Description
Features:
- Provides maximum thrust with a confined, directed airstream. It is the best choice for part ejection, chip removal, and part drying.
- The Stay Set Hose provides precise positioning or repositioning necessary for different applications
- Brass - general purpose applications. Maximum temperature 400°F (204°C).

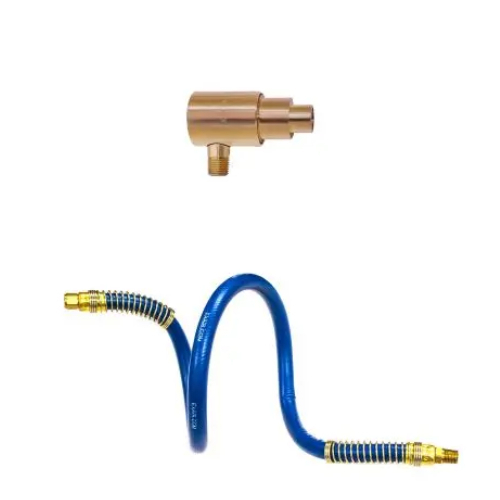

- High Velocity Air Jet with 6" SSH
Applications:
- Part cleaning
- Chip removal
- Part drying
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Air assist
Advantages:
- Reduced compressed air costs
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production

How it Work:
- Air Jets utilize the Coanda effect (wall attachment of a high velocity fluid) to produce air motion in their surroundings.
- As illustrated above, a small amount of compressed air (black arrows) is throttled through an internal ring nozzle above sonic velocity.
- A vacuum is produced, pulling large volumes of surrounding, or "free" air, through the jet (blue arrows).
- Both the outlet and inlet can be ducted for remote positioning. If the end is blocked, flow simply reverses at well below OSHA dead end pressure requirements.


⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Air Consumption | |
| SCFM | 22 |
| SLPM | 622 |
| Force | |
| Ozs | 20 |
| Grams | 567 |
| Sound Level | 82 dBA |
| Force measured at 12" (305 mm) from target with a 0.015" (0.38 mm) shim installed | |
| Sound level measued at 3' (914 mm) | |
| All measurements taken at 80 PSIG (5.5 BAR) | |
