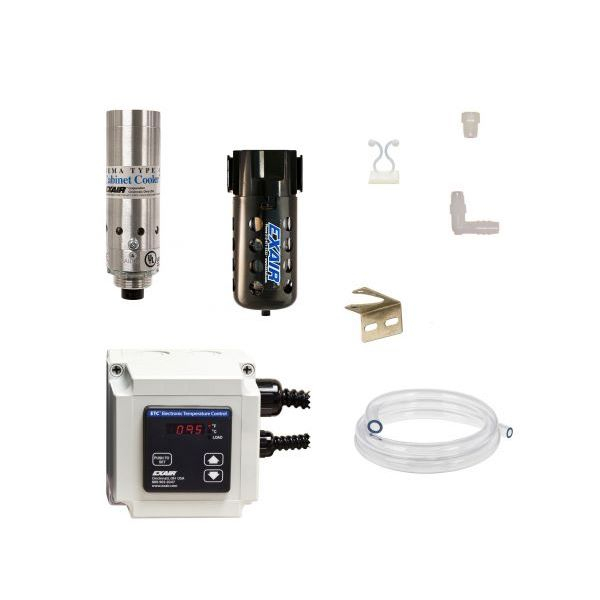

Exair 4808SS-ETC120 NEMA 4X 550 Btu/hr Type 303 Stainless Steel Cabinet Cooler 120V ETC

NEMA 4X thermostat control systems are the most efficient way to operate a Cabinet Cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. The standard thermostat control systems include an adjustable thermostat factory set at 95°F (35°C). NEMA 4X (IP66) Cabinet Coolers are constructed of stainless steel for food service and corrosive environments. Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout. NEMA 4X (IP66) Cabinet Cooler Systems (dust-tight, oil-tight, splash resistant, corrosion resistant, indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure. They are available in many cooling capacities for large and small control panels. All Cabinet Coolers are UL Listed and CE compliant.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales

Advantages

• Low cost
• Corrosion resistant in harsh environments
• Compact
• Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
• Quiet
• Install in minutes
• Maintain NEMA 4X integrity (IP66)
• Stabilize enclosure temperature and humidity
• No CFC's
• No moving parts - maintenance free
• Mount in standard electrical knockout
• Stop nuisance tripping
• Stop heat damage
• Eliminate fans and filters
• Eliminate lost production
• Stop circuit drift
• Stop dirt contamination
• Provide washdown protection

Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
