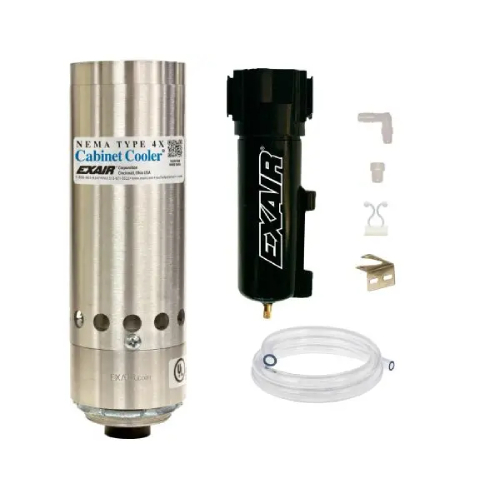

Exair 4715SS NEMA 4X Cabinet Cooler, Continuous Operation, 1000 Btu / hr, 303 Stainless Steel

Features:

• NEMA 4X (IP66) Cabinet Cooler (dust-tight, oil-tight, splash-resistant, corrosion-resistant, for indoor and outdoor service) incorporates a low-pressure relief valve for both the vortex tube and the cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4X enclosure.
• The NEMA 4X (IP66) Cabinet Cooler is constructed of stainless steel for food service and other corrosive environments.
• A continuous-operation NEMA 4X Cabinet Cooler System is recommended when constant cooling and a constant positive purge are desirable. Systems for continuous operation include a Cabinet Cooler, a cold-air distribution kit, and a filter.
• The Cabinet Cooler is UL Listed and CE compliant. It is a low-cost, reliable way to cool and purge an electronic control panel. The EXAIR Cabinet Cooler incorporates a vortex tube to produce cold air from compressed air-with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout.
• Material: 303 Stainless Steel

Applications:

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC / CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales

NEMA 4X Cabinet Cooler Advantages:

• Low cost
• Corrosion resistant in harsh environments
• Compact
• Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
• Quiet
• Install in minutes
• Maintain NEMA 4X integrity (IP66)
• Stabilize enclosure temperature and humidity
• No CFC's
• No moving parts - maintenance free
• Mount in standard electrical knockout
• Stop nuisance tripping
• Stop heat damage
• Eliminate fans and filters
• Eliminate lost production
• Stop circuit drift
• Stop dirt contamination
• Provide washdown protection

How it Work:

• Compressed air enters the vortex tube powered Cabinet Cooler and is converted into two streams, one hot and one cold.
• Hot air from the vortex tube is muffled and exhausted through the vortex tube exhaust.
• The cold air is discharged into the control cabinet through the cold air distribution kit.
• The displaced hot air in the cabinet rises and exhausts to atmosphere through the cabinet air exhaust at a slight positive pressure.
• Thus, the control cabinet is both cooled and purged with cool, clean air.
• Outside air is never allowed to enter the control panel.
