Exair 3925 Adjustable Spot Cooler System, Two Cold Outlets

Features:

• EXAIR's Adjustable Spot Cooler System (two cold outlets) includes everything needed for a dual point cooling station that offers a low cost, reliable, maintenance free solution to a variety of industrial spot cooling problems.
• With the turn of a knob, you can select a precise temperature setting from -30°F (-34°C) to room temperature.
• A swivel Magnetic Base provides easy mounting and portability.
• A Dual Point Hose kit (with cone and fan nozzles) directs the cold air.
• 15 & 30 SCFM (425 & 850 SLPM) generators are included and a 25 SCFM (708 SLPM) generator is installed.
• An Automatic Drain Filter Separator is included to insure a supply of clean air.
• No moving parts or CFC's assures maintenance free operation.

Applications:

• Adjusting thermostats
• Cooling solder
• Cooling machined plastics
• Setting hot melts
• Cooling welding horns
• Cooling molded plastics
• Electronic component cooling
• Cooling gas samples
• Cooling environmental chambers

Advantages:

• No moving parts
• No electricity or chemicals
• Small, lightweight
• Low cost
• Maintenance free
• Instant cold air
• Quiet - less than 75 dBA
• Swivel magnetic base
• Interchangeable generators

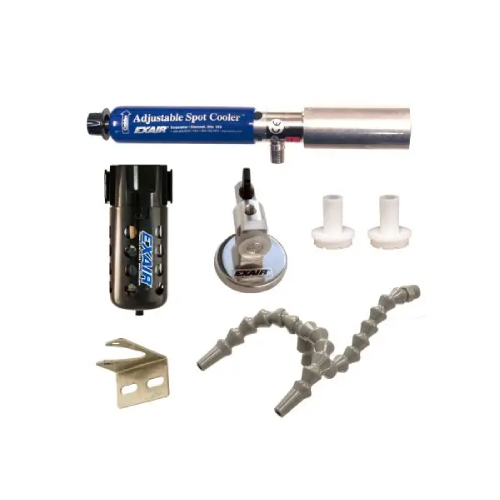

Adjustable Spot Cooler System includes

• Adjustable Spot Cooler (Adjustable Spot Cooler with dual point hose kit is recommended when heat is generated over a larger surface area.)
• Dual point hose kit with cone and fan nozzles
• Swivel magnetic base
• Filter separator
• 15 and 30 SCFM (425 and 850 SLPM) generators. (25 SCFM / 708 SLPM generator installed.)

How it Work:

• The Adjustable Spot Cooler incorporates a vortex tube to convert an ordinary supply of compressed air (1) into two low pressure streams, one hot and one cold.
• With the turn of a knob, the temperature control valve (2) allows some hot air to flow through a muffling sleeve and out the hot air exhaust (3).
• The opposite end provides a cold airstream (4) that is muffled and discharged through the flexible hose, which directs it to the point of use.
• The swivel magnetic base (5) provides easy mounting and portability.
