Exair 3808 Mini Cooler System, One Cold Outlet

Features:

• A proven way to reduce downtime and increase productivity on a variety of operations involving small parts where heat is a problem.
• EXAIR's Mini Cooler produces a stream of 20°F (-7°C) cold air to prevent heat build-up.
• The Mini Cooler is particularly effective on high speed operations to prevent burning, melting and heat related breakage.
• Operation is quiet (76 dBA) and there are no moving parts to wear out.

Applications:

• Small tool cooling
• Needle cooling
• Blade cooling
• Lens grinding

Advantages:

• Low cost
• Increases production rates
• Improves tolerances
• Quiet, compact

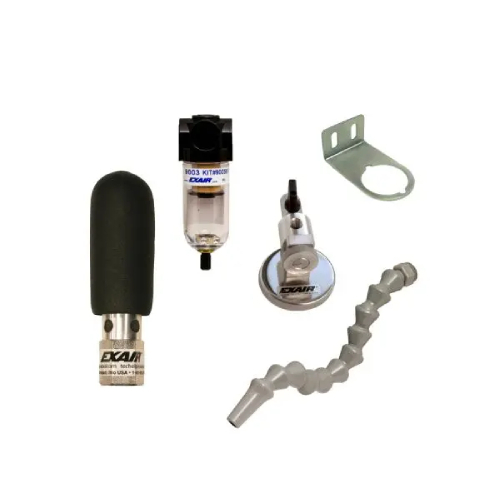

Mini Cooler System (one cold outlet) includes:

• Mini Cooler
• Mini Single Point Hose Kit
• Swivel Magnetic Base
• Manual Drain Filter Separator with Mounting Bracket

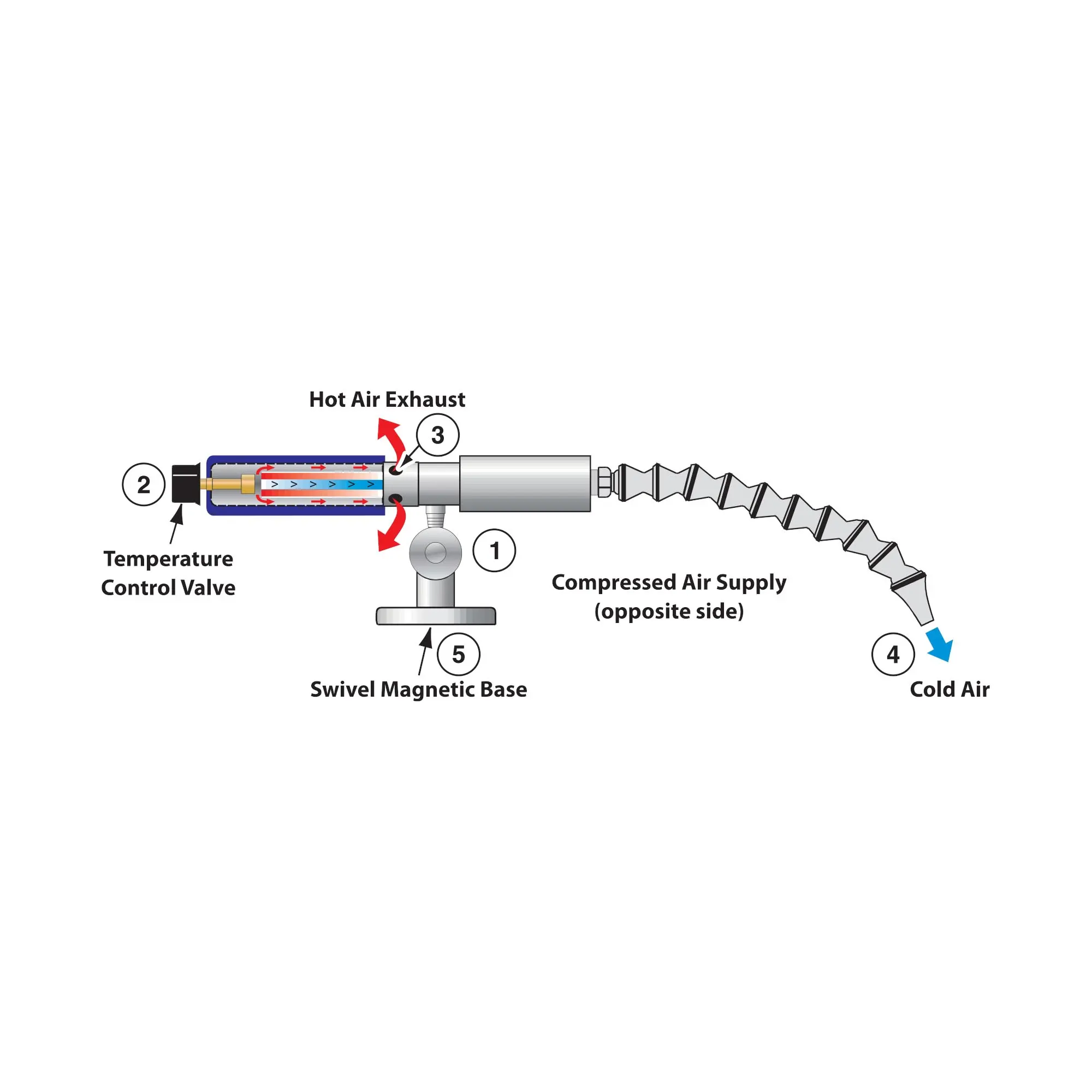

How it Work:

• The Mini Cooler incorporates a vortex tube to convert a small amount of compressed air into two low pressure streams, one moving within the other in opposite directions.
• The two airstreams exchange heat, producing cold air from one end of the tube and hot air from the other.
• A flexible hose directs the cold airstream at the surface to be cooled.
