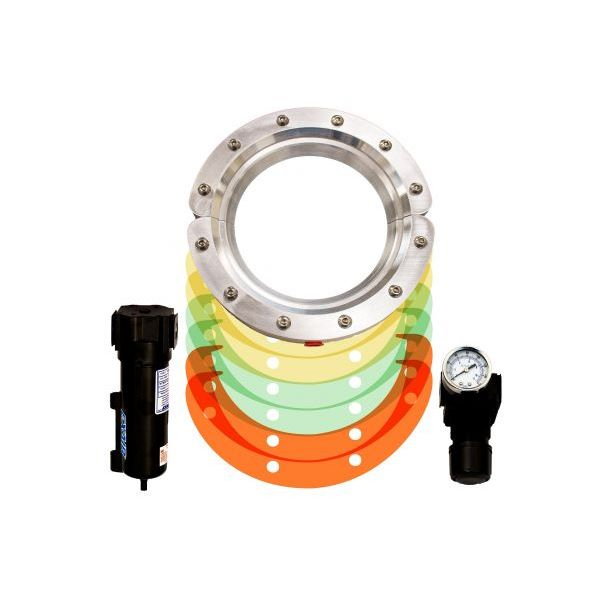

Exair 2485 Aluminum Standard Air Wipe 5" Kit

Overview

This air wipe kit provides a uniform 360° airstream for blowoff, drying, cleaning, and cooling applications.
It includes a standard air wipe, shim set, filter separator, and pressure regulator with coupler.
The split design allows for easy clamping around various materials, eliminating the need for threading.
Ideal for use in industries where a quiet, efficient, and non-contact drying or cleaning solution is required.

Key Features

• Uniform 360° airstream for efficient and even drying/cleaning.
• Split design for easy clamping without threading.
• Aluminum construction for durability and high-temperature applications.
• Quiet operation with low air consumption.
• No electricity or moving parts for minimal maintenance.
• Includes essential components: air wipe, shim set, filter separator, and pressure regulator.

Specifications

• Material: Aluminum
• Length: 5 inches
• Airflow: 360° uniform
• Temperature Range: Up to 400°F (204°C)
• Includes: Shim set, filter separator, pressure regulator with coupler

Applications

• Drying after washing, cleaning, plating, or coating
• Blowoff dust and contaminants
• Cool hot extruded shapes
• Uniformly wipe surfaces
• Dry extruded profiles, rod, and medical tubing
• Eliminate solution carryover
• Blow excess water from automotive door gaskets
• Remove excess coatings, water, and oil
• Dry tube, hose, wire, fiber optics
• Minimize solution loss due to drag-out
• Clean paint gun tips
• Dry screen printed or ink jetted surfaces
• Clean strips and ribbon

Performance and Characteristics

Provides efficient and uniform airflow for various applications.
Easy to install and maintain with its split design and no moving parts.
Offers quiet and energy-efficient operation.
Meets OSHA safety and noise requirements.

Other

Complies with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC), and meets the noise limitation requirements of the EU Machinery Directive (2006/42/EC).
All sound level measurements are taken at 3 feet away.

Optimize your cleaning, drying, and cooling processes with this efficient and versatile air wipe kit.
