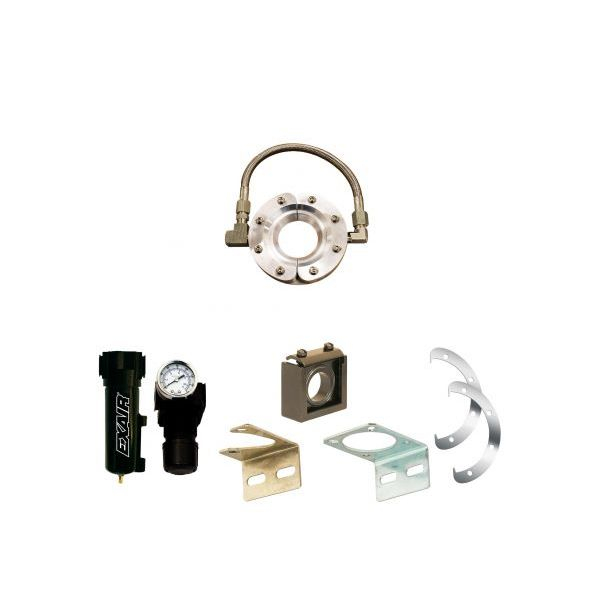

Exair 2454SS Stainless Steel Super Air Wipe 4" Kit

Super Air Wipe Kits include a Super Air Wipe, shim set, filter separator and pressure regulator (with coupler). All models include stainless steel hardware and shims. Models up to 4" diameter include stainless steel braided hose which feeds both halves from one compressed air inlet. They provide a uniform 360° airstream that is ideal for blowoff, drying, cleaning and cooling of pipe, cable, extruded shapes, hose, wire and more. The split design offers easy clamping around the surface of the material moving through it, eliminating the need for threading.

Type 303 Stainless Steel - This is the most common grade of stainless steel. It offers good strength and is best suited to mildly corrosive environments. It can withstand temperatures up to 800°F (427°C).

Applications

• Drying after washing, cleaning, plating or coating
• Blowoff dust and contaminants
• Cool hot extruded shapes
• Uniformly wipe surfaces
• Dry extruded profiles, rod and medical tubing
• Eliminate solution carryover - no cross contamination
• Blow excess water from automotive door gaskets
• Remove excess coatings, water and oil
• Dry tube, hose, wire, fiber optics
• Minimize solution loss due to drag-out
• Clean paint gun tips
• Dry screen printed or ink jetted surfaces
• Clean strips and ribbon

Advantages

• Quiet
• Low air consumption
• Uniform 360° airflow
• Uniform airflow across the entire diameter
• Stainless steel hardware resists corrosion
• Stainless steel models for temperatures up to 800°F (427°C)
• No electricity, no moving parts
• Non-contact - no wiper blade
• Split design - compact, rugged, easy to install
• Lightweight, low profile
• Tapped holes for mounting
• Meets OSHA maximum dead end pressure and noise requirements

Super Air Wipes comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
