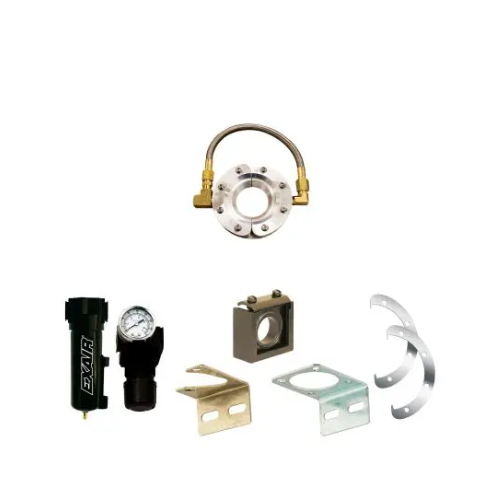

Exair 2452 2" Aluminum Super Air Wipe Kit

Features:

• EXAIR's Super Air Wipe Kit, with stainless steel hardware and shims, provides a uniform 360° airstream that is ideal for blowoff, drying, cleaning and cooling of pipe, cable, extruded shapes, hose, wire and more.
• The split design offers easy clamping around the surface of the material moving through it, eliminating the need for threading.
• Compressed Air Inlets: The Super Air Wipe has compressed air inlets on each half. A stainless steel braided hose connects the air supply from one half to the other.
• Mounting: The Super Air Wipe can be supported by the compressed air supply pipe. Tapped holes (1/4-20) on the downstream side of the Super Air Wipe can also be used for mounting.
• Regulation: A pressure regulator on the compressed air supply provides infinite control of flow, force and air consumption.
• Aluminum - The aluminum Super Air Wipe is suited to a wide variety of environments where corrosion or contamination is not a factor. The aircraft grade aluminum construction with stainless steel shim is very durable for general purpose applications. Stainless steel screws are used to eliminate corrosion in damp locations. It can withstand temperatures up to 400°F (204°C).
• 2" Alum. Super Air Wipe Kit

Applications:

• Drying after washing, cleaning, plating or coating
• Blowoff dust and contaminants
• Cool hot extruded shapes
• Uniformly wipe surfaces
• Dry extruded profiles, rod and medical tubing
• Eliminate solution carryover - no cross contamination
• Blow excess water from automotive door gaskets
• Remove excess coatings, water and oil
• Dry tube, hose, wire, fiber optics
• Minimize solution loss due to drag-out
• Clean paint gun tips
• Dry screen printed or ink jetted surfaces
• Clean strips and ribbon

Advantages:

• Quiet
• Low air consumption
• Uniform 360° airflow
• Uniform airflow across the entire diameter
• Stainless steel hardware resists corrosion
• Aluminum model for temperatures up to 400°F (204°C)
• No electricity, no moving parts
• Non-contact - no wiper blade
• Split design - compact, rugged, easy to install
• Lightweight, low profile
• Tapped holes for mounting
• Variable force and flow
• Meets OSHA maximum dead end pressure and noise requirements

How it Work:

• Compressed air flows through an inlet (1) of the Air Wipe into an annular chamber (2). It is then throttled through a small ring nozzle (3) at high velocity.
• This primary airstream adheres to the Coanda profile (4), which directs it down the angled surface of the Air Wipe.
• A low pressure area is created at the center (5) inducing a high volume flow of surrounding air into the primary airstream.
• As the airflow leaves the Air Wipe, it creates a conical 360° ring of air that attaches itself to the surface of the material running through it (6), uniformly wiping the entire surface with the high velocity airflow.
