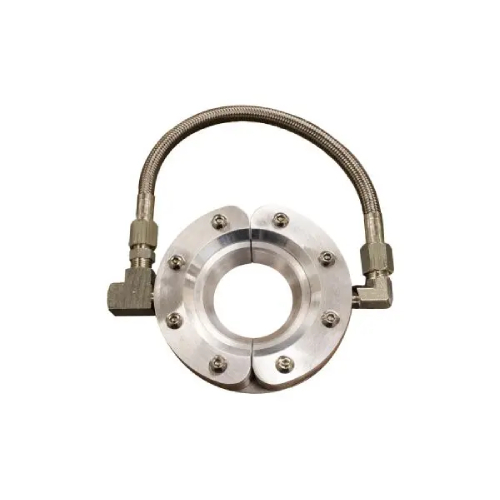

Exair 2402SS 2" 303 Stainless Steel Super Air Wipe

Features:

• EXAIR's Super Air Wipe, with stainless steel hardware and shims, provides a uniform 360° airstream that is ideal for blowoff, drying, cleaning and cooling of pipe, cable, extruded shapes, hose, wire and more.
• Model include stainless steel braided hose which feeds both halves from one compressed air inlet.
• The split design offers easy clamping around the surface of the material moving through it, eliminating the need for threading.
• Compressed Air Inlets: The Super Air Wipe has compressed air inlets on each half. A stainless steel braided hose connects the air supply from one half to the other.
• Mounting: The Super Air Wipe can be supported by the compressed air supply pipe. Tapped holes (1/4-20) on the downstream side of the Super Air Wipe can also be used for mounting.
• Regulation: A pressure regulator on the compressed air supply provides infinite control of flow, force and air consumption.
• Type 303 Stainless Steel - This is the most common grade of stainless steel. It offers good strength and is best suited to mildly corrosive environments. It can withstand temperatures up to 800°F (427°C).
• 2" St. St. Super Air Wipe

Applications:

• Drying after washing, cleaning, plating or coating
• Blowoff dust and contaminants
• Cool hot extruded shapes
• Uniformly wipe surfaces
• Dry extruded profiles, rod and medical tubing
• Eliminate solution carryover - no cross contamination
• Blow excess water from automotive door gaskets
• Remove excess coatings, water and oil
• Dry tube, hose, wire, fiber optics
• Minimize solution loss due to drag-out
• Clean paint gun tips
• Dry screen printed or ink jetted surfaces
• Clean strips and ribbon

Advantages:

• Quiet
• Low air consumption
• Uniform 360° airflow
• Uniform airflow across the entire diameter
• Stainless steel hardware resists corrosion
• Stainless steel model for temperatures up to 800°F (427°C)
• No electricity, no moving parts
• Non-contact - no wiper blade
• Split design - compact, rugged, easy to install
• Lightweight, low profile
• Tapped holes for mounting
• Variable force and flow
• Meets OSHA maximum dead end pressure and noise requirements

How it Work:

• Compressed air flows through an inlet (1) of the Air Wipe into an annular chamber (2). It is then throttled through a small ring nozzle (3) at high velocity.
• This primary airstream adheres to the Coanda profile (4), which directs it down the angled surface of the Air Wipe.
• A low pressure area is created at the center (5) inducing a high volume flow of surrounding air into the primary airstream.
• As the airflow leaves the Air Wipe, it creates a conical 360° ring of air that attaches itself to the surface of the material running through it (6), uniformly wiping the entire surface with the high velocity airflow.
