Description
Features:
- A Super Air Amplifier pulls in a large volume of surrounding air using a small amount of compressed air to produce a high volume, high velocity outlet flow through a fixed air gap.
- Utilizing the Coanda effect, a basic principle of fluidics, An Air Amplifier becomes a simple, low cost way to circulate air, move smoke, fume and light material.
- This is also effective as a blower to cool, clean and dry part or process and in workstation dust collection application.
- The quiet, efficient Super Air Amplifier will create an output flow up to 25 times its consumption rate.
- Both the vacuum and discharge end of the Air Amplifier can be ducted, making it ideal for drawing fresh air from another location, or moving smoke and fume away.

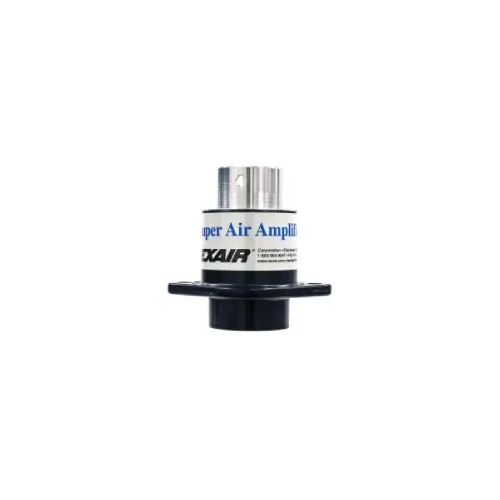

- 1-1/4" Alum. Super Air Amplifier
Applications:
- Vent welding smoke
- Cool hot parts
- Dry wet parts
- Clean machined parts
- Distribute heat in ovens/molds
- Ventilate confined areas
- Dust collection
- Exhaust tank fumes
Advantages:
- Compared to Fans:
- Rated for environments up to 700°F (374°C)
- Compact, lightweight, portable
- No electricity
- No moving parts - no maintenance
- Ends are easily ducted
- Instant on/off
- Variable force and flow
- No RF interference
- Compared to Venturies and Ejectors:
- More air with lower compressed air consumption
- Higher flow amplification
- No internal obstructions
- Meets OSHA pressure and noise requirements
- Quiet

How It Work:
- Compressed air flows through the air inlet (1) into an annular chamber (2).
- It is then throttled through a small ring nozzle (3) at high velocity.
- This primary airstream adheres to the Coanda profile (4), which directs it toward the outlet.
- A low pressure area is created at the center (5), inducing a high volume flow of surrounding air into the primary airstream.
- The combined flow of primary and surrounding air exhausts from the Air Amplifier in a high volume, high velocity flow.


⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| 80 PSIG (5.5 BAR) | |
| Air Consumption | |
| SCFM | 8.1 |
| SLPM | 229 |
| Amplification | |
| RATIO | 18 |
| Air Volume at Outlet | |
| SCFM | 146 |
| SLPM | 4132 |
| Air Volume at 6" (152 mm) | |
| SCFM | 436 |
| SLPM | 12339 |
| Sound Level | 72 dBA |
| Model tested with 0.003" (0.08 mm) shim. | |

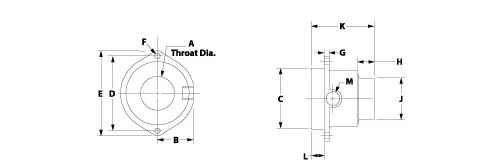

| Dimensions | |
| A | 0.84 in / 21 mm |
| B | 0.94 in / 24 mm |
| C | 1.50 in / 38 mm |
| D | 2.40 in / 61 mm |
| E | 3.03 in / 77 mm |
| F | 0.27 in / 7 mm |
| G | 0.21 in / 5 mm |
| H | 0.75 in / 19 mm |
| J | 1.22 in / 31 mm |
| K | 2.88 in / 73 mm |
| L | 0.59 in / 15 mm |
| M | 1/4 NPT |

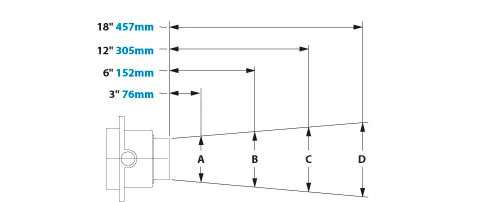

| Super Air Amplifier Airflow Pattern | |
| A | 2 in / 51 mm |
| B | 2.9 in / 74 mm |
| C | 4.7 in / 119 mm |
| D | 6.5 in / 165 mm |
