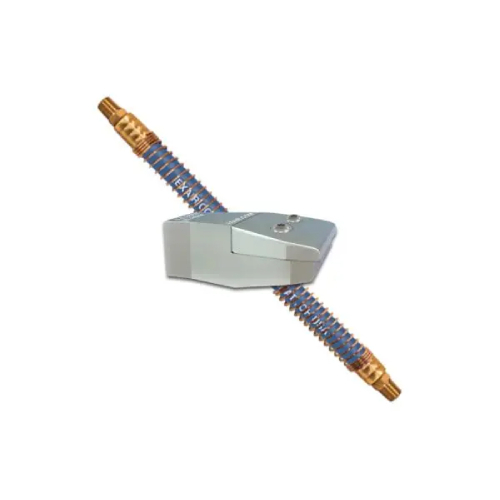

Exair 1122SS-9236 2" 316 Stainless Steel Flat Super Air Nozzle with 36" Stay Set Hose

Features:

• EXAIR's 2" Flat Super Air Nozzle is the 2" wide version of highly efficient, 1" Flat Super Air Nozzle.
• The patented (U.S. Pat 5402938) design uses a special shim to maintain the critical position of the component parts.
• The result is a wide, forceful stream of high velocity, laminar airflow with minimal air consumption and noise.
• The 2" Flat Super Air Nozzle with Stay Set Hose includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required.
• The Stay Set Hose has "memory" and will not creep or bend.
• Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C).
• 2" Flat Super Air Nozzle with 36" SSH

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

How It Work:

• Compressed air flows through an inlet (1) into the plenum chamber of the Flat Super Air Nozzle.
• The flow is directed to a precise, slotted orifice. As the primary airflow exits the thin slotted nozzle (2), it follows a flat surface that directs the airflow in a perfectly straight line.
• This creates a uniform sheet of air across the entire length of the Flat Super Air Nozzle.
• Velocity loss is minimized and force is maximized as the room air (3) is entrained into the primary airstream at a ratio of 40:1.
• The result is a well defined sheet of laminar airflow with hard-hitting force and minimal wind shear.
