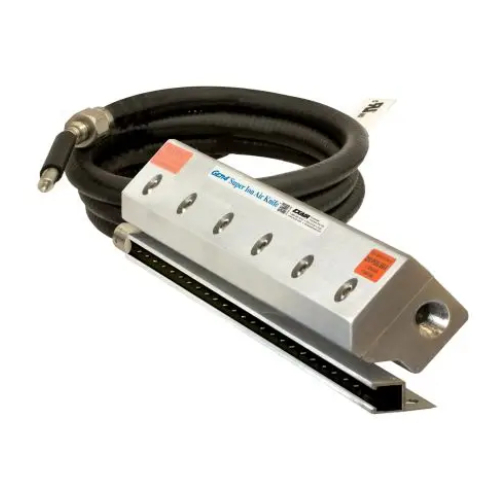

Exair 112012 12" Gen4 Super Ion Air Knife

Features:

• EXAIR's Gen4 Super Ion Air Knife static eliminator removes static electricity from plastics, webs, sheet stock, and other product surfaces where tearing, jamming, or hazardous static discharge is a problem.
• The laminar sheet of air sweeps the surface clean of static, particulate, dust, and dirt.
• Production speed, product quality, and surface cleanliness can improve dramatically.
• 12" Gen4 Super Ion Air Knife

Included:

• Super Air Knife
• Gen4 Ionizing Bar assembly

Applications:

• Web cleaning
• Molding machinery
• Sheeters and trimmers
• Cleaning parts
• Pre-paint dust removal
• Shrink wrappers
• Package cleaning
• Bag opening / fill operations
• Printing equipment

Advantages:

• Up to 34% improved performance
• Rugged metal armored and electromagnetic shielded cable
• Integrated ground eliminates additional ground connection
• Durable stainless steel connections to Power Supply
• Modular power supply cable eases connections and routing.
• Low air consumption
• Uniform airflow across entire length
• Quiet
• Effective up to 20 feet (6.1m)
• Shockless, non-radioactive
• Compact, rugged, easy to install
• Unlimited system lengths of uninterrupted airflow
• Low maintenance
• Variable force and flow

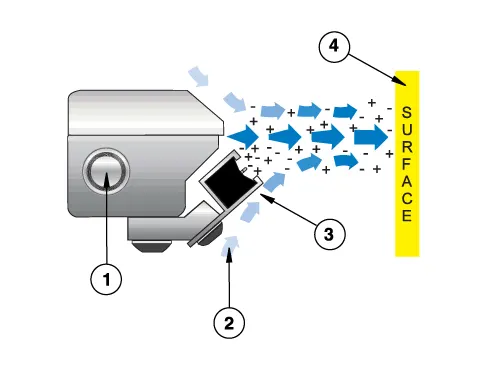

How It Work:

• Compressed air flows through an inlet into the plenum chamber of the Gen4 Super Ion Air Knife.
• The flow is directed to a precise, slotted orifice. As the primary airflow exits, it creates a uniform sheet of air across the entire length that immediately pulls in surrounding room air.
• An electrically powered ionizing bar fills the curtain of air with positive and negative charges.
• The airstream delivers these static eliminating ions to the product surface where it is instantly neutralized and cleaned of dust and other particulates.
