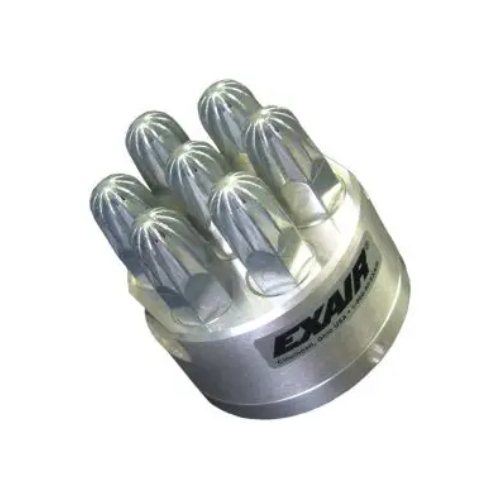

Exair 1111-7 1/2 FNPT Super Air Nozzle Cluster

Features:

• The 1/4 NPT Super Air Nozzle on a round manifold provides force values similar to the largest nozzles, but at significantly lower decibel levels.
• This nozzle is used in applications where low noise levels are the primary requirement.
• It features all-aluminum construction.
• Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

How EXAIR Air Nozzles Work:

• An Air Nozzle uses the Coanda effect to amplify compressed airflow up to 25 times or more.
• Compressed air is ejected through a series of nozzles on the outer perimeter.
• As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream.
• The airstream that results is a high volume, high velocity blast of air at minimal consumption.
• The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
