Exair 1109-PEEK-NPT-9262 PEEK Pico Super Air Nozzle, M5x0.5 x 1/8 MNPT with 12" Stay Set Hose

Features:

• EXAIR's Pico Super Air Nozzle delivers a precise blowoff with a highly focused, forceful blast of airflow.

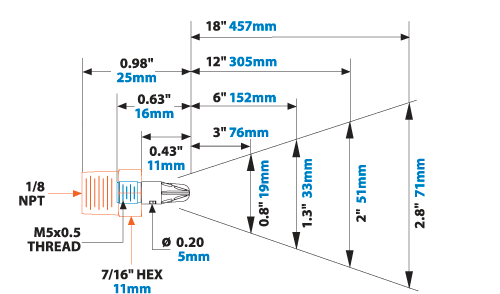

• The narrowly focused air pattern measures 1.3" in diameter at 6" away from the surface.
• The noise level is only 68 dBA.
• Thread size is M5x0.5 and it is available in PEEK thermoplastic.
• The Stay Set Hose provides precise positioning or repositioning necessary for different applications.
• PEEK Plastic - replaces metals in harsh environments. Offers chemical resistance and is non-marring. Max temp 320°F (160°C).
• PEEK Pico Super Air Nozzle with 12" SSH

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

How It Work:

• Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more.
• Compressed air is ejected through a series of nozzles on the outer perimeter.
• As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream.
• The airstream that results is a high volume, high velocity blast of air at minimal consumption.
• The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
