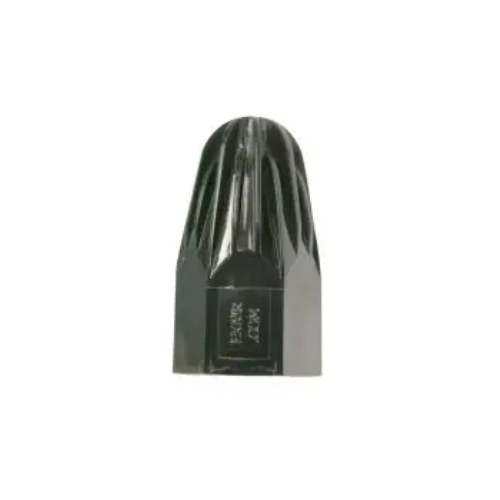

Exair 1106-PEEK 1/2 FNPT PEEK Large Super Air Nozzle

Features:

• The 1/2" FNPT PEEK Large Super Air Nozzle produces strong blowing force up to 3.3 lbs (1.5 Kg).
• It is designed with protective aerodynamic slots that guide the airflow to a single point of convergence, delivering hard-hitting performance and significantly reduced noise compared to typical blowoff devices.
• PEEK Plastic - replaces metals in harsh environments. Offers chemical resistance and is non-marring. Max temp 320°F (160°C).
• 1/2 FNPT Large Super Air Nozzle

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

How It Work:

• Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more.
• Compressed air is ejected through a series of nozzles on the outer perimeter.
• As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream.
• The airstream that results is a high volume, high velocity blast of air at minimal consumption.
• The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
