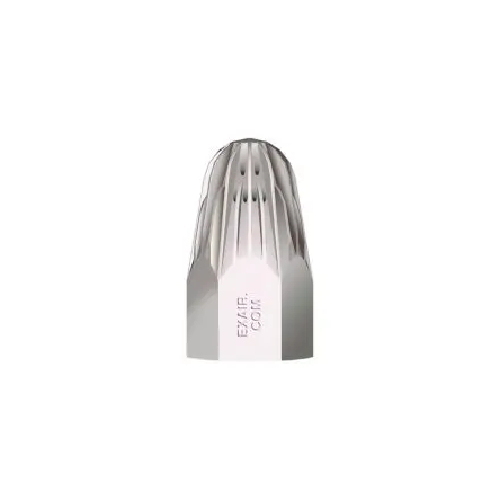

Exair 1104SS 3/8 FNPT 316 Stainless Steel Large Super Air Nozzle

Features:

• The 3/8" FNPT 316 stainless steel Large Super Air Nozzle produces strong blowing force up to 1.9 lbs (850 grams).
• It is designed with protective aerodynamic slots that guide the airflow to a single point of convergence, delivering hard-hitting performance and significantly reduced noise compared to typical blowoff devices.
• Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C).
• 3/8 FNPT St. St. Large Super Air Nozzle

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

How It Work:

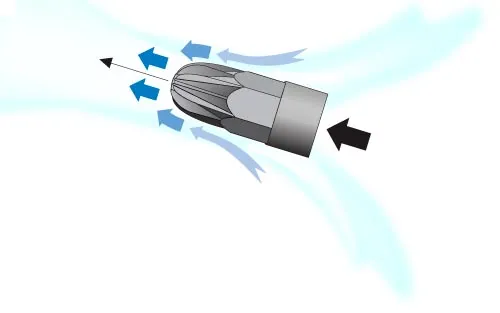

• Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more.
• Compressed air is ejected through a series of nozzles on the outer perimeter.
• As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream.
• The airstream that results is a high volume, high velocity blast of air at minimal consumption.
• The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
