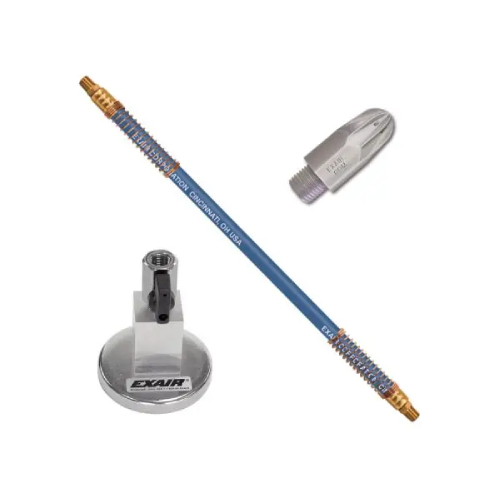

Exair 1103-9386 Mini Super Zinc-Aluminum Air Nozzle with 36" Stay Set Hose and Magnetic Base

Features:

• The 1/8 NPT Mini Super Air Nozzle provides a forceful, concentrated stream of high-velocity airflow.
• It has fewer holes than the larger Super Air Nozzles, resulting in lower sound levels, air consumption, and force.
• The Mini Super Air Nozzle with Stay Set Hose and Mag Base includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required and a One Outlet Magnetic Base for firm attachment to metallic machinery.
• Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).
• Mini Super Air Nozzle with 36" SSH & Mag Base

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

Super Air Nozzle Dimensions & Airflow:

• Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more.
• Compressed air is ejected through a series of nozzles on the outer perimeter.
• As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream.
• The airstream that results is a high volume, high velocity blast of air at minimal consumption.
• The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
