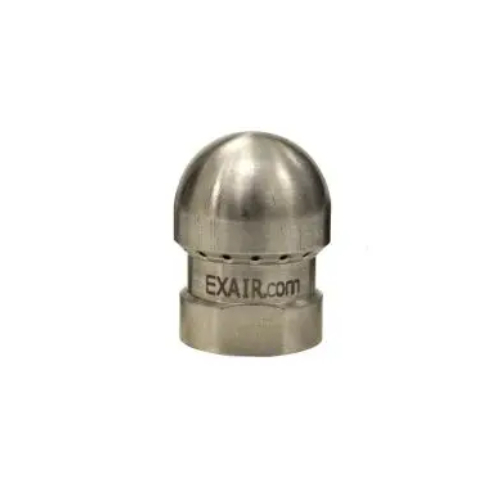

Exair 1006SS Stainless Steel Back Blow Air Nozzle, 1/4 FNPT

Features:

• EXAIR's Back Blow Air Nozzle is engineered to clean the inside of a pipe, tube, hose, or channel.
• An array of holes provides a forceful 360-degree airflow to clear out coolant, chips, or debris created during machining processes.
• The nozzle prevents blowing chips further into a pipe or out the end, which could create a safety hazard.
• Since the airflow is directed back toward the operator, personal protective equipment is recommended.
• It delivers high performance suitable for a wide range of diameters from 1/4" (6.3 mm) up to 16" (406 mm).
• Type 316 Stainless Steel high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

How It Work:

• An Air Nozzle uses the Coanda effect to amplify compressed airflow up to 25 times or more.

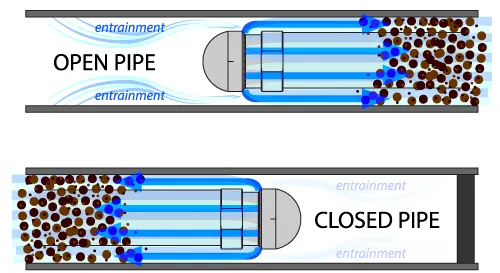

• Back Blow Air Nozzles eject air from an annular ring of nozzles on the outer perimeter, as illustrated.
• The ring of nozzles eject air, back toward the air inlet at an angle to form a cone of high velocity air.
• The airstream that results is a high volume, high velocity blast of air at minimal consumption.
• The air is ejected safely and cannot be blocked, maintaining OSHA's dead end pressure standard.
