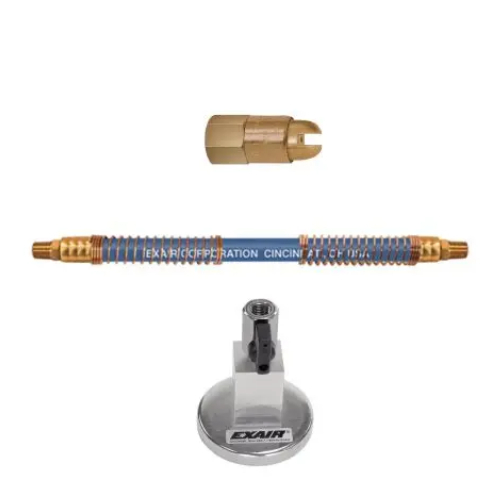

Exair 1002-9312 Safety Air Nozzle with 12" Stay Set Hose and Magnetic Base

Features:

• A Safety Air Nozzle ejects a small amount of compressed air 360° around the outer ring that combines with the air ejected from the center hole to produce a high-volume, high-velocity blast of air.
• The slotted end allows air to vent safely should the nozzle end be blocked.

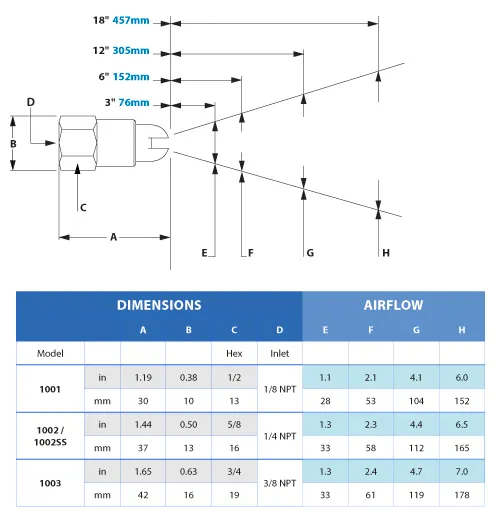

• Thread size 1/4 FNPT in brass.
• The Stay Set Hose provides precise positioning or repositioning necessary for different applications.
• Brass - general purpose applications. Maximum temperature 400°F (204°C).
• The Safety Air Nozzle with Stay Set Hose and Mag Base includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required and a One Outlet Magnetic Base for firm attachment to magnetic surfaces.
• Safety Air Nozzle with 12" SSH and Mag Base

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• High velocity airstream
• Compact
• Installs with a socket wrench
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements

How EXAIR Air Nozzles Work:

• An Air Nozzle uses the Coanda effect to amplify compressed airflow up to 25 times or more.
• Compressed air is ejected through a series of nozzles on the outer perimeter.
• As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream.
• The airstream that results is a high volume, high velocity blast of air at minimal consumption.
• The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
