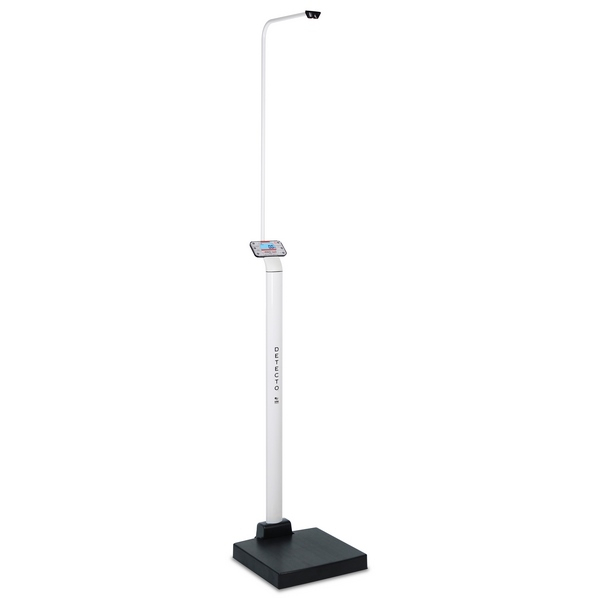

Detecto APEX-SH Apex Digital Clinical Scale, Sonar Height Rod, 600 lb x 0.2 lb / 300 kg x 0.1 kg
- Part #:APEX-SH
- Condition:Brand New



DETECTO's APEX-SH series eye-level digital physician scales feature touchless sonar height rods and an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H. The apex® scale automatically captures patient weight and height readings and displays both onscreen without pushing a single button. The apex® features 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high LCD weight readouts, units locking into kilograms or pounds, BMI calculation, 1 RS232 serial port and 1 micro USB-B port, HL7 IEEE 11073 compliance, and Wi-Fi/Bluetooth and Welch Allyn connectivity available.
Features:
- Units Locking into Pounds or Kilograms
- Wi-Fi / Bluetooth Models Available for Wireless EMR/EHR
- Mother / Baby Function Factors the Weight of Infants and Toddlers Held by an Adult
- 6 Easy-to-Use Buttons
- Dual Integral Wheels
- Measure Weight and Height Without Pushing A Single Button
- Touchless Sonar Height Rods
- Welch Allyn Connectivity Available for Electronic Medical Records
- 600 lb x 0.2 lb / 300 kg x 0.1 kg Capacity
- 17 in W x 17 in D x 2.75 in H platform size
- Sonar touch-less height rod
- Eye-level weight display and column
- 0.75-inch-high LCD readouts
- Body Mass Index calculation
- Made in USA quality
- 1 RS232 serial port and 1 micro USB-B port
- HL7 IEEE 11073 compliant
- Overall Dimensions: 17 in W x 19.5 in D x 89.5 in H / 43 cm W x 49.5 cm D x 227.3 cm H
- Height Rod Measures: 24" (2') - 86" (7'2") x 0.2 in / 60 cm - 218 cm x 0.5 cm
- Net Weight: 32 lb / 14 kg
- Shipping Weight: 41 lb / 19 kg
- Shipping Dimensions: 58 in x 20 in x 6 in / 147 cm x 51 cm x 15 cm
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Capacity: | 600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up) |
| Platform Size: | 17 in W x 17 in D x 2.75 in H / 43.2 cm W x 43.2 cm D x 7 cm H |
| Weighing/Height Units: | Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm) |
| Height Rod: | Sonar touchless height rod |
| Height Rod Measures: | 24" (2') - 86" (7'2") x 0.2 in / 60 cm - 218 cm x 0.5 cm |
| Overall Dimensions: | 17 in W x 19.5 in D x 89.5 in H / 43 cm W x 49.5 cm D x 227.3 cm H |
| Ports: | 1 RS232 serial port and 1 micro USB-B port |
| Device Connectivity: | HL7 IEEE 11073 compliant (standard) |
| Net Weight: | 32 lb / 14 kg |
| Shipping Weight: | 41 lb / 19 kg |
| Shipping Dimensions: | 58 in x 20 in x 6 in / 147 cm x 51 cm x 15 cm |
| Keypad: | 6 buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow) |
| Country of Origin: | USA |
| Display Type: | Dual-row, seven-segment, clinical-blue LCD |
| Number of Characters: | Weight: 5 digit, 0.75 in (19 mm) high / Height/BMI: 4 digit, 0.4 in (10 mm) high |
| Operating Environment: | Operated Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% non-condensing |
| Digital Filtering: | StableSENSE® Adjustable Filtering |
| Construction: | Column - aluminum white powder coated; base - steel; indicator enclosure - ABS |
