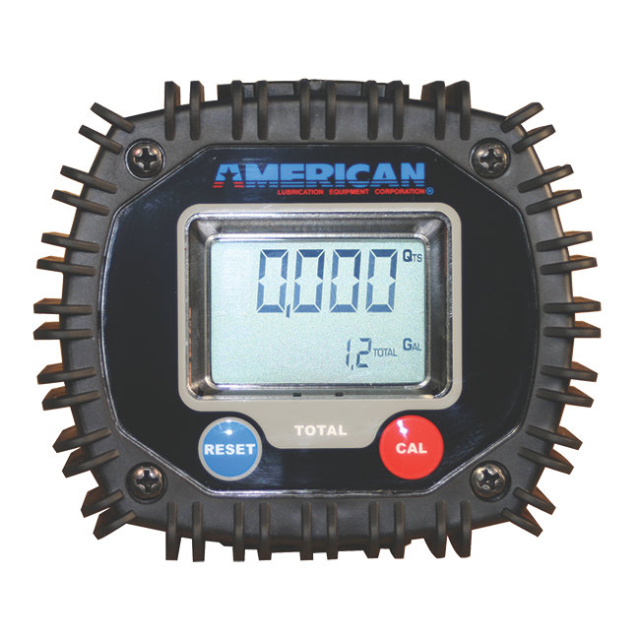

American Lube TIM-615 Stationary Digital Oil Meter with Field Replaceable Electronics, 1/2" NPT, 1–32 QPM, 1000 PSI

Key Facts

Stationary digital oil meter with field-replaceable electronics for measuring fluid lubricants in pints, quarts, gallons, or liters.

• Designed for stationary oil dispensing and lubricant measurement applications
• Field replaceable electronics help simplify maintenance and reduce downtime
• Measures in pints, quarts, gallons, or liters for flexible shop and service use
• 1/2" NPT female inlet and outlet connections
• Working flow rate: 1 to 32 quarts per minute
• Maximum pressure rating: 1,000 PSI

Overview

The American Lube TIM-615 Stationary Digital Oil Meter is built for accurate lubricant measurement in fixed-position dispensing setups. It is suited for monitoring and controlling the delivery of fluid lubricants where consistent volume tracking matters for maintenance shops, service bays, industrial lubrication points, and other oil handling environments.

A key advantage of this stationary digital oil meter is its field replaceable electronics design, which can make service and upkeep more practical in demanding environments. With support for multiple display units including pints, quarts, gallons, and liters, the meter provides flexibility for technicians and facilities that work with different measurement preferences or operating standards.

Features

• Stationary digital meter for fluid lubricant measurement
• Field replaceable electronics design
• Multi-unit measurement capability in pints, quarts, gallons, or liters
• 1/2" NPT female inlet connection
• 1/2" NPT female outlet connection
• Suitable for controlled oil dispensing and lubricant tracking
• Designed for use in stationary dispensing systems

Technical Specifications

• Model: TIM-615
• Product Type: Stationary digital oil meter
• Media: Fluid lubricants
• Measurement Units: Pints, quarts, gallons, liters
• Inlet Connection: 1/2" NPT (F)
• Outlet Connection: 1/2" NPT (F)
• Working Flow Rate: 1 to 32 quarts per minute
• Maximum Pressure Rating: 1,000 PSI
• Service Feature: Field replaceable electronics

Compatibility

This digital oil meter is intended for use with fluid lubricant dispensing systems that match its 1/2" NPT female inlet and outlet connection format and operate within the stated flow and pressure limits. It is best suited for stationary installations where accurate oil measurement is needed as part of a controlled lubrication or fluid handling setup.

Use Cases

• Stationary oil dispensing points in service shops and fleet maintenance facilities
• Lubricant monitoring in industrial maintenance operations
• Oil delivery measurement at fixed fluid management stations
• Applications requiring digital tracking of dispensed lubricant volume
• Shops that use multiple fluid measurement units depending on process or operator preference

What’s Included

• American Lube TIM-615 Stationary Digital Oil Meter

Installation Notes

• Verify connection compatibility before installation using the 1/2" NPT female inlet and outlet specification
• Use only within the stated working flow range and maximum pressure rating
• Intended for stationary mounting or fixed-position dispensing applications
• Confirm the fluid is an appropriate lubricant for the meter and system setup

Product FAQs

What is the American Lube TIM-615 used for?

The TIM-615 is used to measure dispensed fluid lubricants in a stationary setup where controlled and trackable oil delivery is needed.

What fluids is this meter designed to measure?

This model is described for measuring fluid lubricants.

What measurement units does the TIM-615 support?

It measures in pints, quarts, gallons, or liters.

What are the connection sizes on this stationary digital oil meter?

The meter has 1/2" NPT female inlet and 1/2" NPT female outlet connections.

What is the flow rate range for the TIM-615?

The working flow rate is 1 to 32 quarts per minute.

What is the maximum pressure rating?

This stationary digital oil meter has a maximum rating of 1,000 PSI.

What does field replaceable electronics mean?

It means the electronics section is designed to be replaced in the field, which can help simplify service and reduce downtime compared with replacing the entire meter assembly.

Is this oil meter portable or stationary?

This model is identified as a stationary digital oil meter, making it better suited for fixed-position installations rather than handheld dispensing use.

Can this meter help with lubricant control in a shop or maintenance area?

Yes. A stationary digital oil meter like the TIM-615 can help improve lubricant tracking, dispensing consistency, and fluid management in fixed dispensing locations.
