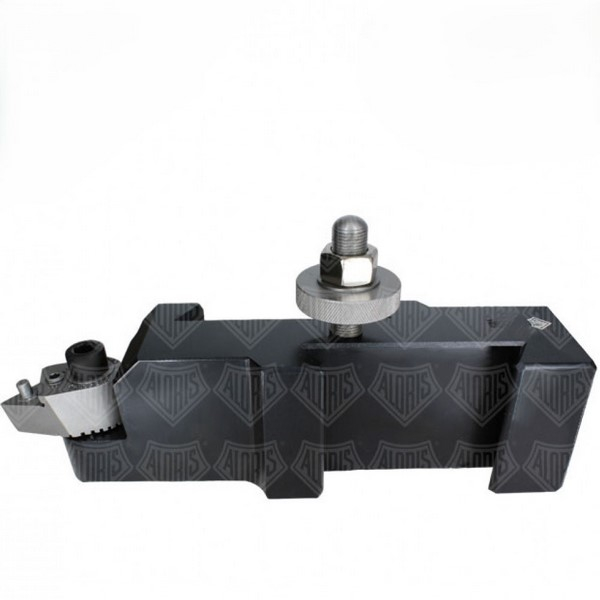

Aloris EA- 22 EA Series Universal Turning and Boring Holder

Features:

• A unique design provides for many angular turning, contouring and chamfering operations. The cartridge has 12 indexing positions at 15° intervals. All holders assure proper cutting edge and clearance angles at all indexing points. Two-way adjustable rake for right or left hand turning with 5° cutting angle - positive stop. Tool steel cartridge adjusts every 15º for right or left hand turning, facing or chamfering. 12 positive lock positions. Exclusive positive lock with 2-way force holding insert down and tight against shoulder. Standard triangular carbide insert has 6 cutting edges.
• The model #22, with its two-dovetail design, leads to a wide range of applications by permitting front and rear turning, contouring, boring and facing operations.
• Dimensions (see image)
  • A: 3";
  • E: 2-1/8";
  • Min. Bore Dim.: 5";
  • Max. Bore Length: 4"
