Aloris DA-115 DA Series Profiling Tool Holders, Right Hand

Features:

• Available with right hand design for front or rear turning, profiling and contouring operations. Design features include: Unique, positive locking of insert is accomplished by the two-way force exerted by locking pin and the locking screw. Insert is held down and tight against the shoulders. Clamp lock insures extra rigidity of insert and holds chip-breaker, when used, securely in place. Choice of various diamond shaped inserts provides adaptation to positive or negative rake profiling. Available in Model #115 (right hand), dovetail mounting design assures maximum repeating accuracy when used with standard Aloris Tool Post. Holder supplied with shim and clamp.

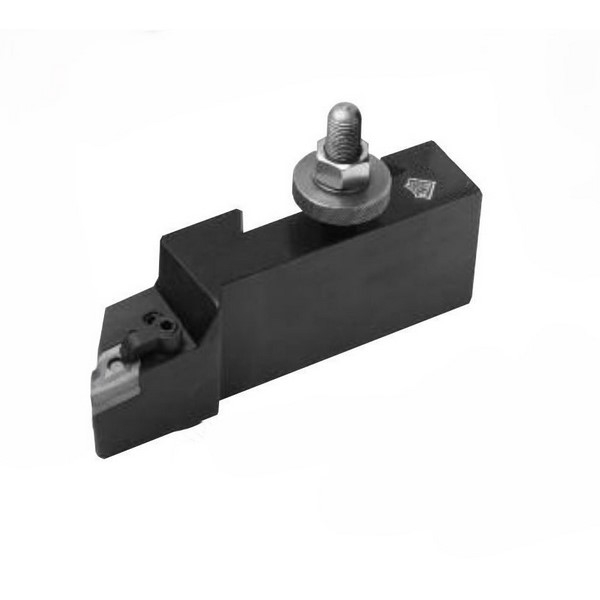

• Dimensions (see image)
  • A: 1-3/4";
  • B: 2-7/8"
• Profiling Insert
  • I.C.: 5/8";
  • thickness: 3/16"-1/4";
  • rake: positive or negative
