Technical details
Device
Product Type | Reader and Controller |
Device Type | Access Controller; RFID Reader; Face Reader |
Product Application | Access Control with Card + Face Recognition + Temperature Detection |
Application Environment | Indoor |

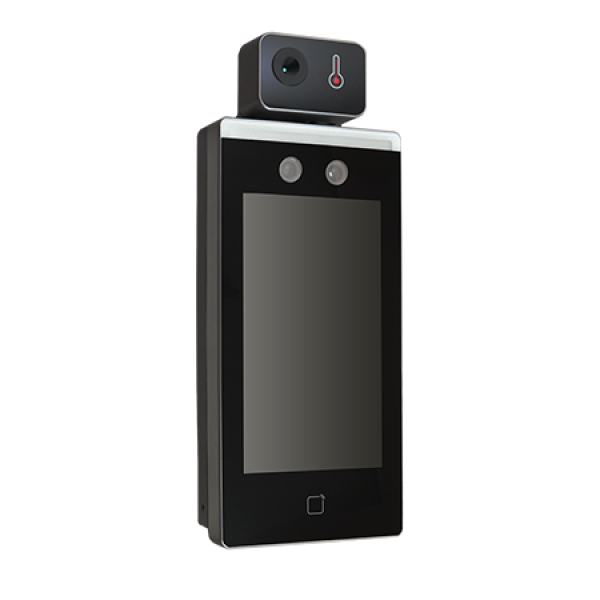

Description | Thermal and Optical 2MP Mifare LCD Card Face Recognition Wiegand Reader and Controller with Bundle 6,000 Card Database / 6,000 Face Database. |
Image Sensor | Progressive Scan CMOS + Thermal sensor |
Effective Pixels | Thermal: 120(H) X 160(V) |
LCD Screen | 7" Color Touch Screen; Resolution: 1024 x 600 |
Lens
Number of Lenses | 2 Lenses |
Focal Length | Fixed focal |
Video
Built-in Analytics | Face Recognition, Human Temperature Detection, RFID Recognition |
Network
Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
Video Analytics
Face Recognition Distance | 0.3m - 1.8m |
Temperature Measurement
Temperature Range | 30°C ~ 45°C (86°F ~ 113°F) |
Temperature Detection Distance | 0.3m ~ 1.8m |
Event
Event Log | 100,000 |
System
Operating System | Linux |
RFID Card
Communication Frequency | 13.56 MHz |
RFID Standard | ISO 14443A |
Reading Range | 0-5cm |
RFID Options | MIFARE |
Storage
User Database | Card Capacity: 6000; Face Picture Capacity: 6000 |
Face Only Detection User Limit | 6000 |
Interface
Serial Port | 1 x RS-485 |
Digital Input/Output | 2/1 |
Digital Input | Door contact x 1, Exit Button x 1 |
Relay Output | Door lock x 1 |
External Reader | Wiegand x 1 |
General
Power Source | DC 12V, 2 A |
Weight | 990g (2.183lb) |
Dimensions | (W x H x D): 117mm x 285mm x 35mm (4.61" x 11.22" x 1.38") |
Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
Operating Humidity | 10% - 95% RH |
Warranty | 1 Year(s). |
