Technical details
Device
Product Type | Reader and Controller |
Device Type | Access Controller; RFID Reader; Face Reader |
Maximum Resolution | 2MP |
Product Application | Access Control with Card + Face Recognition (99%) |
Application Environment | Indoor |

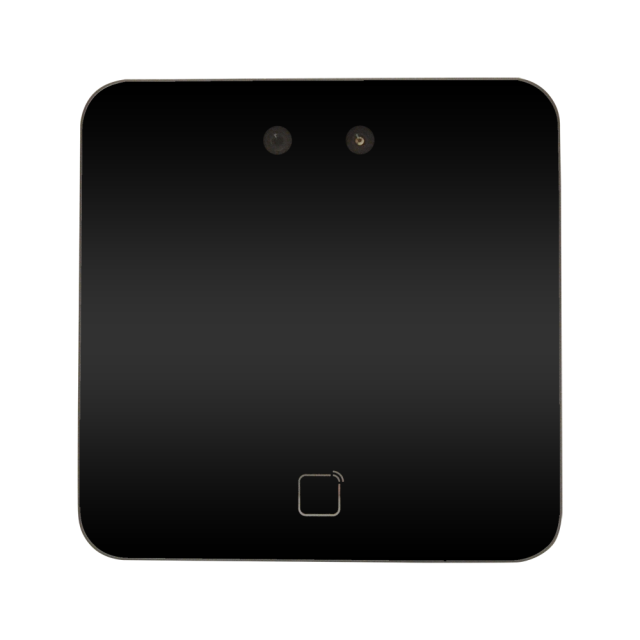

Description | 2MP Mifare LCD Card Face Recognition Wiegand Reader and Controller with Bundle 10,000 Card Database / 6,000 Face Database. |
LCD Screen | 4.3" Color Touch Screen; Resolution: 800 x 480 |
Lens
Number of Lenses | 2 Lenses |
Focal Length | Fixed focal |
Video
Built-in Analytics | Face Recognition, Face Mask Detection, RFID Recognition |
Audio
Audio Type | 2-way, Built-in Speaker |
Network
Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
Video Analytics
Analysis Source Type | Video, Image |
Metadata Accuracy | Excellent |
Face Recognition Distance | 0.3m - 3m |
Event
Event Log | 150,000 |
System
Operating System | Linux |
Language | English, Traditional Chinese |
Access Control Functionality
Access Mode | Card only, Face only, Card and Face |
Wiegand | Wiegand 26, Wiegand 34 |
RFID Card
Communication Frequency | 13.56 MHz |
RFID Standard | ISO 14443A |
RFID Options | MIFARE |
Storage
User Database | Card Capacity: 10,000; Face Picture Capacity: 6000 |
Card + Face Detection User Limit | 6000 |
Face Only Detection User Limit | 6000 |
Interface
Serial Port | 1 x RS-485 |
Digital Input | Exit Button x 1, Door contact x 1 |
Relay Output | Door lock x 1 |
External Reader | Wiegand x 1 |
General
Power Source | DC 12V (adapter not included), 2 A |
Weight | 300g (0.66lb) |
Dimensions | (W x H x D): 118mm x 118mm x 24mm (9.41" x 4.59" x 1.30") |
Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
Operating Humidity | 0% - 90% RH |
Warranty | 1 Year(s). |
