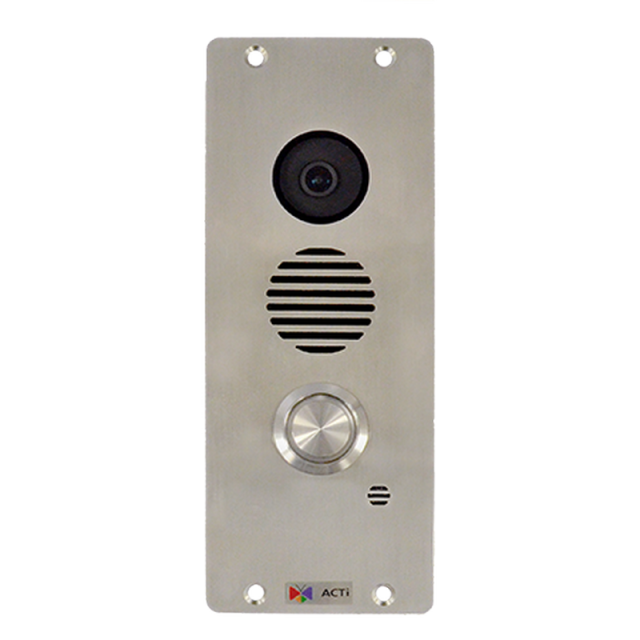

ACTi Q970 2MP Emergency Service Indoor Intercom Camera with Basic WDR, SLLS, Fixed Lens

  • Part #:Q970
  • Condition:Brand New
0 Reviews Write a Review
  • List Price: $1,779.00
    • $1,601.10 / Each
      You Save: 10.0%
  • Free Shipping logoFree Shipping
See product details
  • Technical details
  • Description
  • You May Also Like
  • Your Recently Viewed Items
  • Reviews
Technical details

Device

Product TypeIntercom
Maximum Resolution2MP
Application EnvironmentIndoor
Image SensorProgressive Scan CMOS
Sensor Size1/2.9 "
Effective Pixels1984(H) X 1105(V) (2.19 MP)
Day / NightNo
Low Light SensitivitySuperior
Minimum IlluminationColor: 0.003 lux
Mechanical IR Cut FilterNo
Horizontal Resolution (TV Lines)1100 TVL
S/N Ratio52 dB

Lens

Focal LengthFixed focal, f3.6mm
ApertureF1.85
IrisFixed iris
FocusFixed focus
Lens MountBoard mount
Horizontal Viewing Angle87.5°
Vertical Viewing Angle48.1°

Video

CompressionH.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480
Multi-StreamingSimultaneous dual streams based on two configurations
Bit Rate28Kbps - 6Mbps (per stream)
Bit Rate ModeConstant, Variable
Wide Dynamic RangeBasic WDR (75 dB)
Image EnhancementWhite Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
Digital Noise ReductionDNR
Privacy Mask4 configurable regions
Text OverlayYes
On-Screen GraphicsYes
Image OrientationFlip, Mirror

Audio

Audio Type2-way, Built-in Microphone, Mic-in, Line-in, Built-in Speaker
Audio Compression8 kHz, 16 bit encoding, Mono, G.711

Network

Ethernet Port1 x RJ-45 connector

Event

Event TriggerTouch button, External device through digital input, Sound detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account)
Event ResponseNotify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

System

System LogSupport
WatchdogSupport

Integration

Unified SolutionFully compatible with ACTi software
Software Development KitYes
Edge RecordingSupport (integration with NVR by ONVIF Profile G or proprietary protocol)*
ONVIF CompliantYes, Profile S, Profile G, Profile T, Profile Q
Web BrowserIE 11, Google Chrome, Microsoft Edge, Apple Safari

Interface

Serial Port1 x RS-485
Local StorageMicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Digital Input/Output2/2
Operating ButtonReset Button

General

Power SourceDC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption12.95 W (PoE)
Weight728g (1.605lb)
Dimensions(W x H x D): 82mm x 212mm x 47.2mm (3.2" x 8.3" x 1.9")
Environmental CasingWeatherproof front plate only (IP66), Vandal proof metal casing (IK10)
Mount TypeWall Mount, Gang Box
Starting Temperature-40°C ~ 55°C (-40°F ~ 131°F)
Operating Temperature-40°C ~ 55°C (-40°F ~ 131°F)
ApprovalsCE, FCC, IP66 (front plate only), IK10 (metal casing)
Real-time Clock (RTC)Yes
Warranty3 Year(s)
Comments* Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
