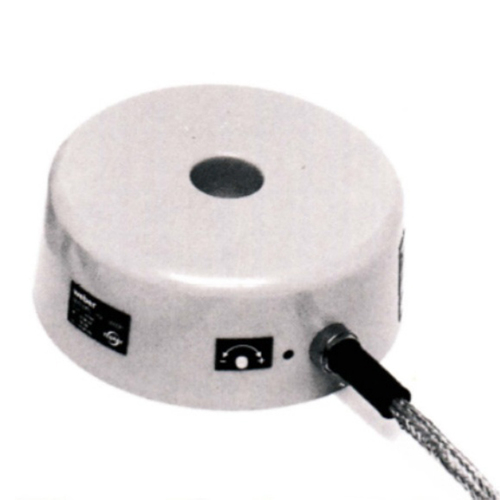

Weber Sensors 2040.63 U Proxi-Captor Proximity Switch with 40 mm Switching Distance and Universal Mounting Plate, with Submersible Sealed Potentiometer, 110 VAC
- Part #:2040.63 U
- Model #:Proxi-Captor
- Condition:Brand New
- List Price: $1,941.06
- $1,794.20 / EachYou Save: 7.57%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $1,941.06
- $1,794.20 / EachYou Save: 7.57%
- Free Shipping
The Proxi-captor: A Rugged Inductive Proximity Switch for Harsh Industrial Environments
This Proxi-captor is a rugged, inductive proximity switch specifically conceived for installation in demanding, harsh industrial environments. A key design feature is its simple nylon Allen bolt mounting, which protects the unit from serious mechanical damage in the event of a collision by breaking cleanly.
Engineered for heavy industrial applications, the Proxi-captor is fully resin encapsulated and constructed from durable materials. Its high-frequency oscillator is detuned when a metal component approaches, which subsequently drives a switching stage via a trigger amplifier to deliver a reliable switching signal.
Features:
- compact and remote
- self-adjusting and adjustable proximity switches
- fully encapsulated
- no moving parts
- ABS plastic housings
- ISO 9001:2015
This inductive proximity switch is ideal for contactless switching tasks in heavy industry where switching distances may vary, high switching frequencies occur, large sensing distances are concerned, or high repeatability is required. It offers simple installation with a center fixing bolt, an adjustable switching range, and is short-circuit protected, featuring fully encapsulated electronics.
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Electrical data | |
| Voltage | AC |
| Output | thyristor |
| Output function | Normally Open |
| Supply voltage | 110 VAC |
| Power consumption | approx. 0,45 VA open at 220 V |
| Voltage drop | approx. 9,5 V at 30 mA |
| Trip point for overload protectio | approx. 350 mA |
| Switching current | 5 - 200 mA |
| Mechanical data | |
| Installation | Center hole mounting with nylon Allen bolt |
| Mounting screws | M 12 x 50 |
| Connection Cable/moulded | oilflex 0,5 mm2 |
| Connection plug | watertight connection plug |
| Mass | 350g |
| Dimensions in mm (dxh) | 75 x 35 |
| Nominal switching distance | 40 mm |
| Correction factors | Fe= 1.0; CrN1 = 0.85; Brass = 0.54; Al= 0.5; Cu= 0.46 |
| Vibration and shock | in accordance with DIN 57 4 11 |
| Hysteresis | approx. 10 % of switching distance |
| Housing material | ABS plastic |
| Protection standard | IP 65 / DIN 400 50 |
| Function indicator | LED |
| Ambient temperature | -1 0 °C to + 65 °C (14 °F to 148 °F) |
| Repeatability | better than 1 % |
| Short circuit protection | max. 1 short circuit / s |
