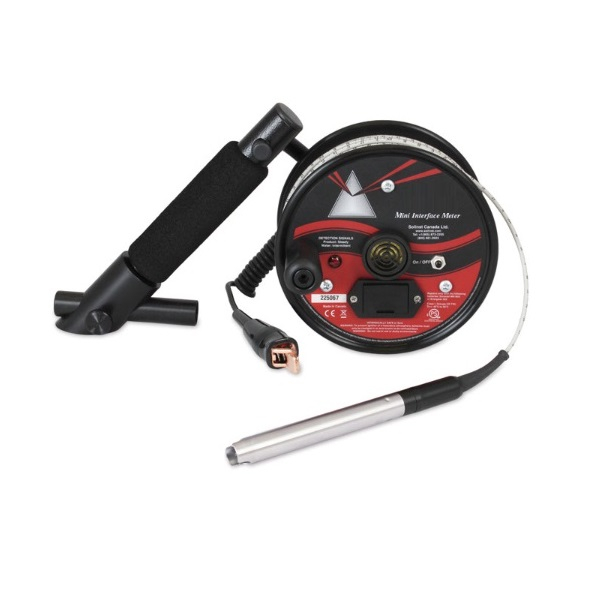

Solinst 110942 Mini Oil/Water Interface Meter for Laser Marked Flat Tape 25m (Case Extra)

Mini Oil/Water Interface Meter for Laser Marked Flat Tape 25m (Case Extra)

Mini Oil/Water Interface Meters give clear and accurate measurements of product level and thickness in wells and tanks. Determination of both light (floating) non-aqueous phase liquids (LNAPL) and dense (sinking) non-aqueous phase liquids (DNAPL) is quick and easy. Mini Interface Meter with laser marked cable is a convenient small version, which can easily fit in a backpack or an optional custom mini carry case. It uses narrow laser marked cable 25m lengths. The Mini Interface Meter enhanced electronics include automatic circuitry testing; 300 hours of on-time battery life; clear signals; and high accuracy. The circuits are powered by one standard 9V battery housed in easy-access drawer in the faceplate.

Probe

P8 Probe, which is 16 mm (5/8") in diameter and stainless steel. It is pressure proof, up to 500 psi. The beam is emitted from within a Hydex cone-shaped tip. The tip is protected by an integral stainless steel shield, and is excellent for the vast majority of product monitoring situations. A cleaning brush is included with each Meter.

Laser Marked Cable

The cable is traceable to NIST and EU measurement standards. The 3 mm (0.12") coaxial cable has a durable jacket with permanent laser markings each millimeter. The cable has a braided copper outer conductor, a stranded stainless steel central conductor, and a smooth chemicalresistant surface that is easy to decontaminate.

Features

• Sensor accuracy to 1.0 mm or 1/200 ft
• Certified intrinsically safe
• 16 mm (5/8") diameter probe
• Easy access battery: minimum 300 hours of life
• Stable electronics with automatic circuitry testing
• Compact and easy to transport in a backpack
• Designed for rugged field use
