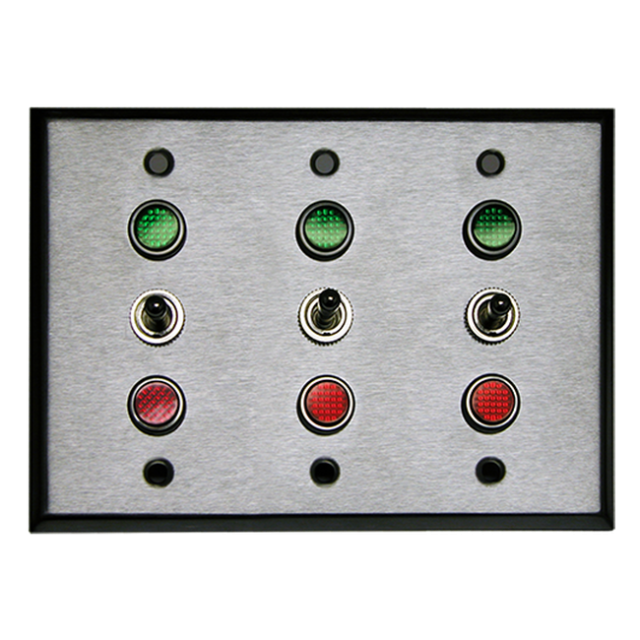

Signal-Tech 34235 TG333 SPDT/24VDC 3 Gang Switch (3-SPDT)

Key Facts

• Three-gang switch assembly with (3) SPDT On/Off/On switches
• Designed for 24VDC control applications
• Includes indicator lights for switch status visibility
• Brushed stainless-steel cover plate for durability and clean appearance
• Suitable for control panels, signage systems, and industrial setups

Overview

The TG333 3 Gang Switch assembly is a compact and reliable control solution featuring three independent SPDT (single pole double throw) switches in a single unit. Designed for 24VDC applications, it allows users to control multiple functions or circuits from one convenient location.

Each switch offers a 3-position On/Off/On configuration, making it ideal for directional control, mode selection, or multi-function switching. Integrated indicator lights provide clear visual feedback on switch status, while the brushed stainless-steel faceplate ensures durability and a professional finish suitable for commercial and industrial environments.

Product images are for reference only and may vary.

Features

• Three-gang configuration: Combines three switches into one compact assembly.
• SPDT On/Off/On switches: Supports multi-position control for versatile operation.
• 24VDC operation: Designed for low-voltage control systems.
• Integrated indicator lights: Provides visual confirmation of switch status.
• Durable faceplate: Brushed stainless-steel cover for long-term use and clean appearance.
• Panel-ready design: Suitable for installation in standard electrical enclosures.

Technical Specifications

• Product Type: 3 gang switch assembly
• Switch Type: SPDT (Single Pole Double Throw)
• Switch Positions: On/Off/On (3-position)
• Number of Switches: 3
• Voltage: 24VDC
• Faceplate Material: Brushed stainless steel
• Indicator Lights: Included

Compatibility

• 24VDC control systems
• Industrial control panels
• Signage and lighting control applications
• Automation and equipment interfaces

Use Cases

• Controlling multiple sign functions or lighting circuits
• Directional or mode switching in equipment systems
• Panel-mounted control in industrial or commercial setups
• Managing multiple outputs from a single control point

What’s Included

• 3 gang SPDT switch assembly with stainless steel cover plate

Installation Notes

• Designed for use with a compatible electrical box (not included).
• Ensure proper wiring for 24VDC systems.
• Follow applicable electrical codes and installation guidelines.
• Professional installation recommended for optimal performance and safety.

Category FAQs

What does SPDT mean?

SPDT (Single Pole Double Throw) refers to a switch that can connect one input to one of two outputs, allowing for multiple control positions.

What is the benefit of a 3-position switch?

An On/Off/On configuration allows for greater control flexibility, such as switching between two functions or directions.

Are the indicator lights required for operation?

No. They provide visual feedback but are not required for basic switch functionality.

Is the electrical box included?

No. A compatible electrical box must be provided separately.

Where is this switch typically used?

It is commonly used in control panels, signage systems, and industrial equipment requiring multi-function switching.
