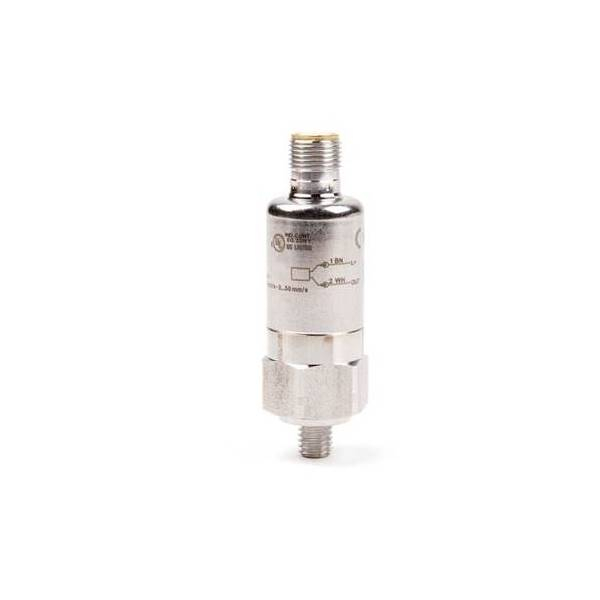

Sensaphone FGD-0303 4-20mA Vibration Sensor
- Part #:FGD-0303
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free Shipping4-20mA Vibration Sensor
Features:
- Measures vibrations from 0 to 25 RMS
- Requires a 24VDC power supply (FGD-0070)
- The vibration sensor comes with two threaded adapters allowing it to screw into either: (a) 1/4"-28 UNF threaded hole, min. depth 13mm or (b) M8 threaded hole, min. depth 10mm
Vibration on industrial equipment can be continuously monitored for unusual operating conditions and potential failure. The vibration sensor is designed to be permanently mounted on industrial equipment and continuously monitor the changes in a machine's vibration level. Detecting these changes early on prevents machinery from catastrophic failure, secondary damage, and expensive down time. The sensor comes with a 5m cable and is available with an optional magnetic mounting base. A 24V DC power supply is required to power the sensor.
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Cable Length | 16.4' | 5m |
| Input Circuit | 1 x analog 4-20mA |
| Measuring Range (mm/s) | 0 to 25 RMS |
| Frequency Range (Hz) | 10 to 1,000 |
| Ambient Temperature Range | -25° to 80°C |
| Operating Voltage | 9.6 to 32 DC |
| Sensor Series | 4-20mA |
| Protection | IP 67 / IP 68 / IP 69K |
| Notes | Requires a 24VDC power supply (FGD-0070) Available with optional magnetic mounting foot - FGD-0303-MOUNT |
| Mounting Thread Size | The vibration sensor comes with two threaded adapters: (a) 1/4"-28 UNF threaded hole, min. depth 13mm (b) M8 threaded hole, min. depth 10mm |
