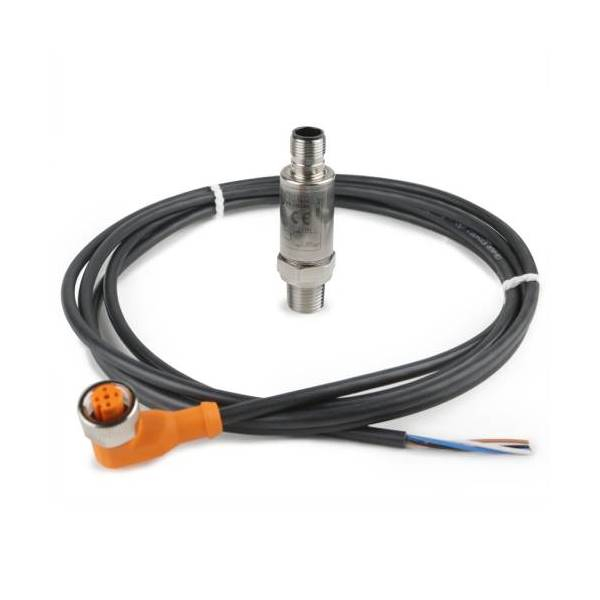

Sensaphone FGD-0301 4-20mA Pressure Sensor
- Part #:FGD-0301
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free Shipping4-20mA Pressure Sensor
Features:
- Measures pressure from 0 to 200 psi, or 0-1,000 psi
- Requires a 24VDC power supply
- Compatible with refrigerants
- Suitable for higher range pressure applications, such as steam boilers and the high side/discharge lines on HVAC equipment which can exceed 500PSI
The sensor can be programed to detect pressure levels from 0 to 200 PSI. An alarm from the pressure sensor can indicate a problem with a pump, a possible clogged influent line, loss of suction, a downstream clog or perhaps a burst pipe. Any of those failures can cause a pump motor to overheat and warp. A 24V DC power supply is required to power the sensor.
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Process Connection | 1/4-18 NPT |
| Measuring Range | 0 to 200 psi, 0 to 1,000 |
| Operating Voltage | 8.5 to 36 VDC |
| Output Function | 4-20mA Analog |
| Accuracy | <0.5% |
| Operating Temperature | -40°F to 194°F |
| Protection | IP 67 | IP 69K |
| Dimensions | 2.63 x .75" |
| Cable Length | 6.6' |
| Notes | Requires a 24VDC power supply |
