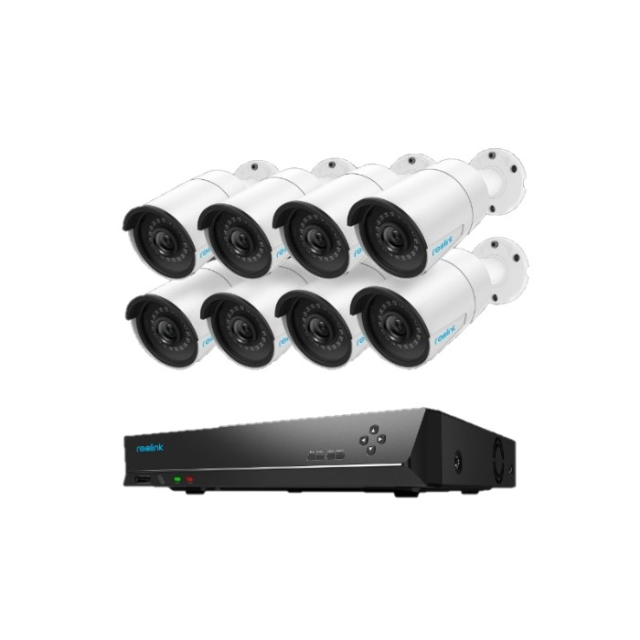

Reolink RLK16-410B8 (5MP Version) 5MP Home Security Camera System
- Part #:RLK16-410B8 (5MP Version)
- Condition:Brand New
- Technical details
- Description
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| RLN16-410 | |
| Hardware | V2 |
| IP Video Input | PoE IP camera x 16 |
| Audio Input | Cameras with built-in mic |
| Video Output | VGA, HDMI |
| Display Resolution | HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768; VGA: 1920*1080, 1280*1024, 1280*720, 1024*768 |
| Audio output | 1-channel, RCA |
| Live View / Playback Resolution | 4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p |
| Video Format | H.265, H.264 |
| Synchronous Playback | Up to 4 channels |
| SATA | 2 x SATA interface (1 x 4TB HDD included) |
| External HDD | No |
| Capacity | Up to 12TB (max. 6TB capacity for each HDD) |
| USB Interface | 2 x USB 2.0 |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN; 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3 af/at |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Firefox, Chrome, Edge, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 48V~54V |
| Power Consumption | <10W (without HDD & PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
| Dimensions | 330 x 45 x 285mm |
| Weight | 2.4kg |
| B500(5MP) | |
| Note | The cameras of the kit cannot work without the NVR |
| Image Sensor | 1/2.7" CMOS Sensor (B500); 1/3" CMOS Sensor (B400) |
| Video Resolution | B500: 2560x1920(5.0 Megapixels); B400: 2560x1440 (4.0 Megapixels) |
| Lens | f=4.0 mm Fixed, F=2.0 |
| Angle of View | Horizontal: 80°, Vertical: 58°(B500); Vertical: 42°(B400) |
| Day/Night Mode | Auto Switchover |
| Min. Illumination | 0 Lux (With IR Illuminator) |
| IR Distance | 30 Meters (100ft)(LED: 18pcs/14mil/850nm) |
| Backlight Compensation | Support |
| Noise Reduction | 3D DNR |
| Compression | H.264 |
| Resolution | Mainstream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Substream: 640x480 |
| Bitrate | Mainstream: 1024Kbps~8192Kbps; Substream: 64Kbps~512Kbps |
| Frame Rate | Mainstream@30fps, Substream@7fps |
| Interface | Built-in Microphone |
| Interface | One 10M/100Mbps RJ45 |
| Power Supply | DC12V & PoE (IEEE 802.3af 48V Active) |
| Power Consumption | <10W(B500); <8W(B400) |
| Working Environment | -10°C~+55°C (14°F~131°F), Humidity: 10%~90% |
| Ingress Protection | IP66 |
| Dimension | Φ67x186 mm |
| Weight | 350g |
