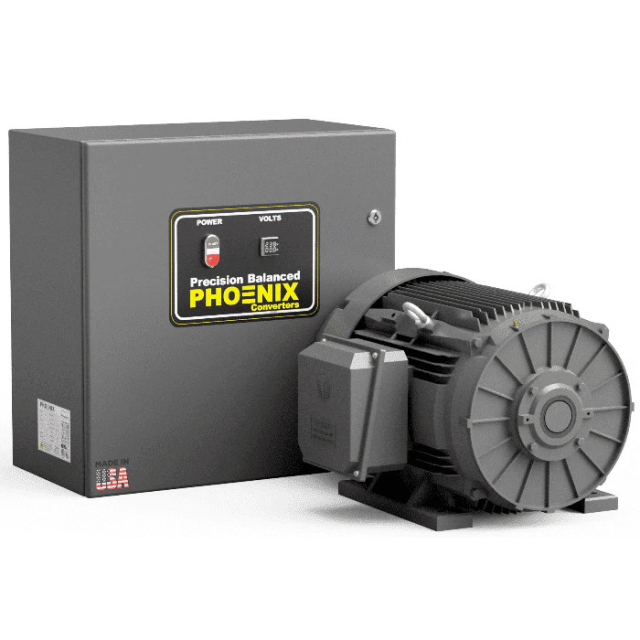

Phoenix Phase Converters GP60PL 60 HP Rotary Phase Converter - Single Phase to Three Phase Converter
- Part #:GP60PL
- Model #:PL Model
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e){kind=small}
Free Shipping60 HP Rotary Phase Converter - Single Phase to Three Phase Converter
Control Panel
Nema 4 Indoor/Outdoor Rate
At Phoenix Phase Converters we use the best components that last a lifetime. The 5 HP rotary phase converter - It is sealed from any outside environment and is made to be used in a metal shop, wood shop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. An intuitive standard voltage meter display to monitor your generated phase. The rotary phase converter is engineered with a NEMA 4 enclosure to ensure it is durable in a variety of commercial environments.
Generator/Idler
Totally Enclosed Fan Cooled
Standard Feature - TEFC (Toatlly Enclosed Fan Cooled Generator and Cast Iron Frame.
Our Highly Reliable Motors. At Phoenix Phase Converters we use the best components that last a lifetime. The 5 HP rotary phase converter - GP5PL single phase to three phase converter features a totally enclosed fan cooled and cast iron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. Watch this video to learn more. (video link)
Optional Features
Most Advanced Useful Features
Options:
- Wireless Remotes
- Without Start and Stop Button with built-in Contactor
- Programmable Timer ON/OFF
- Load Detection OFF
- Load Detection Auto Start and OFF
- AutoLink Box to Transformer 460 Volts Output
- AutoLink Box to Pair to another Phase Converter
- Wifi or Cloud-Based Energy Phase Meter Includes Timer, Cloud-Base ON/OFF, Voltage Meter, KW per hour, and Cost.
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
| General Specifications: | |
| HP: | 60 |
| KW: | 44.7 |
| KVA: | 52.05 |
| HZ: | 50/60 |
| Panel Enclosure: | NEMA4 Indoor/Outdoor, Hinged |
| Motor: | Cast Iron TEFC |
| Frame: | 364T |
| Idler Weight: | 782 lbs |
| Electrical Panel Weight: | 78 lbs |
| Enclosure Certifications: | UL 508A (CSA C22.2No. 14-13.), TUV, CE |
| Panel Color: | Gray White (RAL7035) |
| Panel Dimensions: | 24 x 12 x 24 |
| Motor Dimensions: | 17 x 17 x 27 |
| Single Phase Specs: | |
| Voltage Input: | 230 VAC |
| Motor Load Breaker Minimum Size: | 120 |
| Motor Load Breaker Maximum Size: | 300 |
| Breaker Type | Motor Load |
| Single Phase Line Input Wire Size: | 3/0 |
| Start and Stop with Built-In Contactor: | No |
| Three Phase Specs: | |
| Voltage Output: | 230 VAC |
| Maximum Output Inductive Load Amps: | 160 |
| Maximum Output Resistive Amps: | 84 |
| Voltage Balancing: | +/- 2% |
| Minimum Wire Size Idler/Generator: | 1/0 |
| Largest Spindle Motor Start: | 30 HP |
| Largest Compressor Motor Start: | 24 HP |
| Total Combined Horsepower Run: | 60 HP |
| Options: | |
| Start and Stop with Built-In Contactor: | Yes |
| Voltmeter Display: | Yes |
| AutoStart/AutoOff: | No, add-on available |
| Wireless Remote ON/OFF: | No, add-on available |
| GPX Energy Monitor Cloud System ON/OFF and Times: | No, add-on available |
