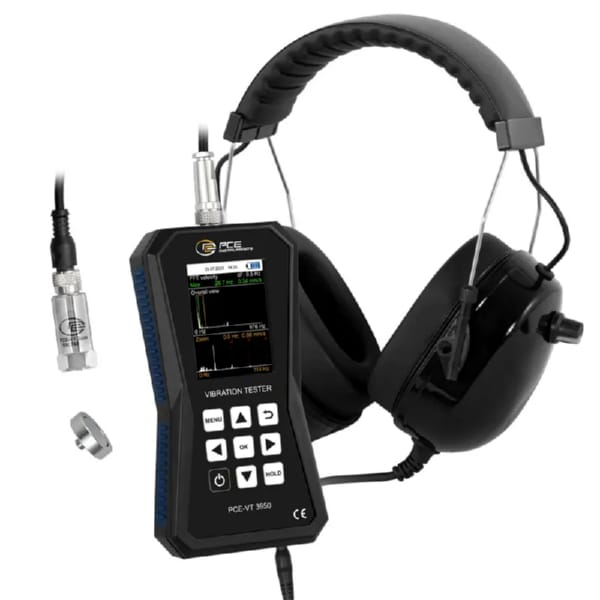

PCE Instruments PCE-VT 3950 Accelerometer with Internal Memory
- Part #:PCE-VT 3950
- Condition:Brand New
- List Price: $2,211.00
- $1,777.80 / EachYou Save: 19.59%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $2,211.00
- $1,777.80 / EachYou Save: 19.59%
- Free Shipping
PCE Instruments PCE-VT 3950 Accelerometer with Internal Memory | FFT Analysis | ISO 10816-3 Evaluation
The PCE-VT 3950 is a portable and versatile accelerometer designed for comprehensive vibration analysis in industrial and maintenance applications. This device measures vibration displacement, velocity, and acceleration, offering a range of features like FFT analysis, route measurement, and automatic ISO 10816-3 evaluation for comprehensive machine diagnostics and troubleshooting.
Key Features:
- Versatile Measurement: Measures vibration displacement, velocity, and acceleration up to 399.9 m/s².
- FFT Analysis: Provides detailed frequency spectrum analysis for in-depth vibration evaluation.
- Route Measurement: Streamlines repetitive measurements at identical points for efficient monitoring.
- ISO 10816-3 Evaluation: Automatically assesses vibration severity based on ISO standards.
- Internal Memory: Stores measurement data for later analysis and comparison.
- Rechargeable Battery: Conveniently rechargeable via micro-USB interface for extended use.
- PC Interface: Transfer data to a PC for in-depth analysis with included software.
Product Specifications:
- Measurement Range: 0.0 - 399.9 m/s² (acceleration)
- Frequency Range: 10 Hz - 1 kHz
- Display: 2.8-inch LCD
- Battery: Rechargeable (2500 mAh)
- Interface: Micro USB
- Additional Features: FFT analysis, route measurement, ISO evaluation, internal memory, headset included
Kit Includes:
- PCE-VT 3950 accelerometer
- External vibration sensor
- Spiral cable
- Magnetic adapter
- Micro USB cable
- USB stick with software and instructions
- Quick start guide
- Carrying case
- Headset
Ideal for:
- Industrial Maintenance: Monitoring and diagnosing vibration issues in machinery and equipment.
- Quality Control: Ensuring the proper functioning and performance of rotating components.
- Research and Development: Analyzing vibration characteristics in various applications.
Enhance your vibration analysis capabilities with the PCE-VT 3950 accelerometer. With its comprehensive features and user-friendly interface, it's the perfect tool for identifying and resolving vibration issues in your industrial equipment.Order yours today!
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Measuring range | Acceleration |
| 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s² | |
| Resolution | 0.1 m/s² / 3.94 in/s² |
| Accuracy at 160 Hz | ±2 % |
| Frequency range | 10 Hz ... 10 kHz |
| 1 kHz ... 10 kHz | |
| Measuring range | Velocity |
| 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s | |
| Resolution | 0.1 mm/s / 0.0039 in/s |
| Accuracy at 160 Hz | ±2 % |
| Frequency range | 10 Hz ... 1 kHz |
| Measuring range | Rotational Speed |
| 600 ... 50000 RPM | |
| FFT acceleration | 10 Hz ... 8 kHz |
| FFT velocity | 10 Hz… 1 kHz |
| Accuracy at 160 Hz | ± 2% |
| Number of FFT lines | 2048 |
| Route measurement | 100 routes each with 100 machines each with |
| 100 measuring points with 1000 measured values each | |
| Measuring range | Displacement |
| 0.000 ... 3.9 mm / 0.000 - 0.154 in | |
| Resolution | 1 µm / 39.4 µin |
| Accuracy at 160 Hz | ±2 % |
| Frequency range | 10 Hz ... 200 Hz |
| Measurement parameters | RMS, Peak, Peak-Peak |
| Crest factor | |
| Manual memory | 99 folders with 50 measured values each |
| Data logger | Various start/stop triggers |
| Measurement interval between 1 s … 12 h | |
| 50 memory locations with 43200 measured values each | |
| Units | can be switched to metric / imperial |
| Display | 2.8" LC display |
| Menu languages | English, German, French |
| Spanish, Italian, Dutch | |
| Portuguese, Turkish, Polish | |
| Russian, Chinese, Japanese | |
| Power supply | internal: LiPo battery (3.7 V, 2500 mAh) |
| external: USB 5 VDC, 500 mA | |
| Headset connection | 3.5 mm jack plug |
| Operating time | ca. 15 … 20 h (depending on display brightness) |
| Operating and storage conditions | temperature: -20 ... +65 °C / -4 ... 149 °F |
| humidity: 10% RH ... 95% RH, | |
| non-condensing | |
| Protection class | IP52 |
| Dimensions | 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3" |
| Weight | 239 g / 8.4 oz |
| Technical Data Vibration Sensor | |
| Resonance frequency | 24 kHz |
| Transverse sensitivity | ≤ 5% |
| Destruction limit | 5000 g (peak) |
| Operating and storage temperature | -55 °C … +150 °C / -67 °F ... 302 °F |
| Housing material | stainless steel and plastic |
| Mounting thread | ¼ - 28" |
| Dimensions | Ø 17 x 46 mm / 0.67 x 1.8" |
| Weight (without cable) | 119 g / 4.2 oz |
