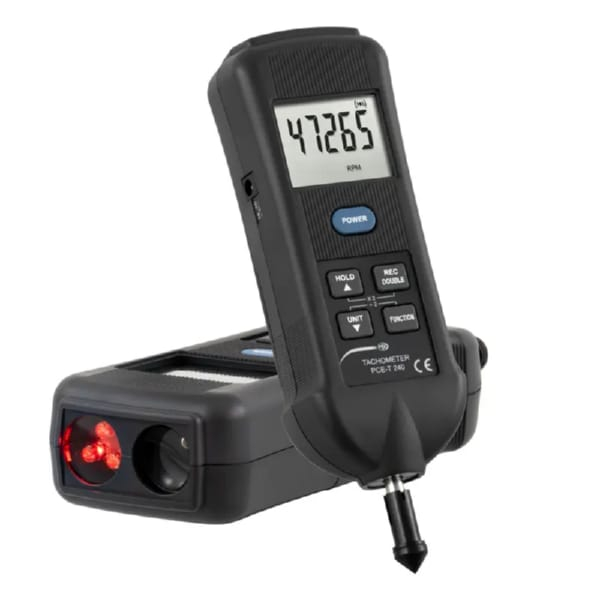

PCE Instruments PCE-T 240 Tachometer with Temperature Measurement
The PCE-T 240 is a multi-functional tachometer that combines speed measurement with temperature measurement capabilities. This versatile device offers contact and non-contact speed measurement, a strobe function for visual speed analysis, and the ability to connect K-type thermocouples or PT1000 temperature sensors.
Key Features:
- Dual Measurement Modes: Contact and non-contact speed measurement using mechanical probes or a laser.
- Strobe Function: Enables visual speed analysis by illuminating the rotating object with a flashing light.
- Temperature Measurement: Connects to K-type thermocouples or PT1000 sensors for temperature readings.
- Versatile Power Options: Operates on batteries or with the included mains power adapter.
- Wide Measurement Range: Measures up to 99,999 rpm in contact mode.
Specifications:
- Measurement Range (Optical): 5 to 99,999 rpm
- Measurement Range (Contact): 0.5 to 99,999 rpm
- Temperature Measurement Range: Depends on the connected thermocouple or sensor.
- Display: LCD
- Power Supply: 4 x 1.5V AA batteries or mains adapter
Applications:
Ideal for maintenance, repair, and inspection tasks in various industries, including:
- Industrial Maintenance: Monitoring motor speeds, conveyor belts, and rotating machinery.
- Automotive: Measuring engine RPM and wheel speed.
- HVAC: Measuring fan speeds, blower performance, and air duct temperatures.
- Laboratory and Research: Analyzing rotational speed and temperature in experiments.
Kit Content:
- 1 x PCE-T 240 Tachometer
- 1 x Measuring tip (outer cone)
- 1 x Measuring hollow tip (inner cone)
- 1 x Measuring wheel
- 1 x Reflective contact strip
- 1 x Carrying case
- 4 x 1.5V AA batteries
- 1 x Instruction manual
Performance:
Provides accurate and reliable speed and temperature measurements in a user-friendly and versatile design.
Characteristics:
- Type: Digital Tachometer with Temperature Measurement
- Measurement Modes: Contact and Non-Contact
Experience the convenience and multi-functionality of the PCE Instruments PCE-T 240 Tachometer with Temperature Measurement. Upgrade your measurement tools today for improved efficiency and accuracy in your speed and temperature measurement tasks.
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Optical measurement | |
| Measuring range | 5 … 99,999 RPM |
| Resolution | 0.5 RPM (< 1,000 RPM) |
| 1 RPM (≥1,000 RPM) | |
| Accuracy | ±(0.05 % of reading + 1 digit) |
| Detection distance | 50 … 150 mm, 2 ... 6 inch (typical) |
| maximum 300 mm, 12 inch | |
| (depending on ambient lighting) | |
| Contact measurement | |
| Measuring range | 0.5 … 19,999 RPM |
| Resolution | 0.5 RPM (<1,000 RPM) |
| 1 RPM (≥1,000 RPM) | |
| Accuracy | ±(0.05% of reading + 1 digit) |
| Measuring range | 0.05 ... 1,999.9 m/min |
| Resolution | 0.05 m/min (<100 m/min) |
| 0.1 m/min (≥100 m/min) | |
| Accuracy | ±(0.05% of reading + 1 digit) |
| Measuring range | 0.2 ... 6,561.4 ft/min |
| Resolution | 0.1 ft/min (<1,000 ft/min) |
| 1 ft/min (≥1,000 ft/min) | |
| Accuracy | ±(0.05% of reading + 1 digit) |
| Measuring range | 2.0 ... 78736.2 in/min |
| Resolution | 0.1 in/min (<1,000 in/min) |
| 1 in/min (≥1,000 in/min) | |
| Accuracy | ±(0.05% of reading + 1 digit) |
| Strobe | |
| Measuring range | 100 … 99,990 RPM/FPM |
| Resolution | 0.1 RPM (<1,000 PRM) |
| 1 RPM (1,000 … 30,000 RPM) | |
| 5 RPM (30,000 … 50,000 RPM) | |
| 10 RPM (50,000 … 99,990 RPM) | |
| Accuracy | ±(0.1% of reading + 2 digits) |
| LED | three red LEDs |
| Temperature (Type K) | |
| Measuring range | -50.0 … 1300.0 °C |
| Resolution | 0.1 °C |
| Accuracy | ±(0.4 % of reading +0.5 °C) |
| Measuring range | -100.0 … -50.1 °C |
| Resolution | 0.1 °C |
| Accuracy | ±(0.4 % of reading +1 °C) |
| Measuring range | -58.0 … 2372.0 °F |
| Resolution | 0.1 °F |
| Accuracy | ±(0.4 % of reading +1 °F) |
| Measuring range | -148.0 … -58.1 … °F |
| Resolution | 0.1 °F |
| Accuracy | ±(0.4 % of reading +1.8 °F) |
| Temperature (PT1000) | |
| Measuring range | -10.0 … 70.0 °C, 14.0 … 158.0 °F |
| Resolution | 0.1 °C, 0.1 °F |
| Accuracy | ±1.2 °C, ± 2.2 °F |
| More specifications | |
| Display | LCD display, 43 x 33 mm, 5 digits |
| Storage | largest and smallest measured value |
| Power supply (mains power) | 9 V DC, 100 mA |
| Power supply (battery) | 4 x 1.5V AA batteries |
| Power consumption | DC 42 mA |
| Automatic shutdown | after 10 minutes of inactivity |
| Interface | RS232 |
| Environmental conditions | 0 … 50 °C, 32 … 122 °F, <80 5 RH, |
| (non-condensing); | |
| magnetic field <3 V/M, <30 MHz | |
| Dimensions | 207 x 67 x 39 mm, 8.15 x 2.63 x 15.3 inch |
| Weight | 230 g, 0.5 lb (without batteries) |
