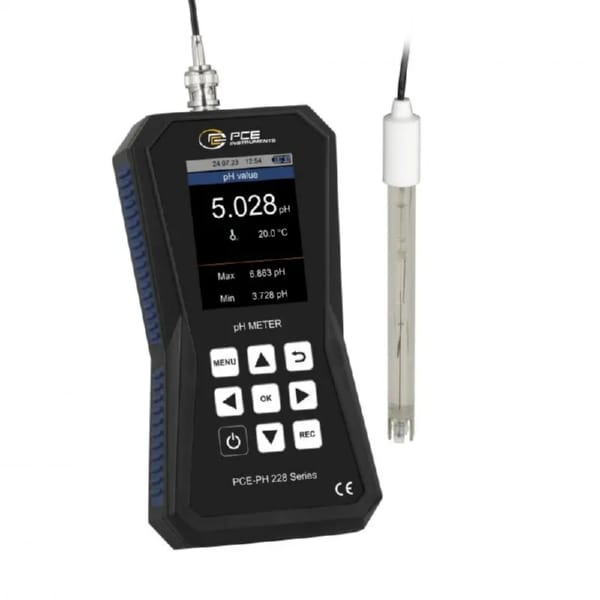

PCE Instruments PCE-PH 228 Environmental Meter with GLP Data Management
- Part #:PCE-PH 228
- Condition:Brand New






Environmental Meter with GLP Data Management / High Accuracy ± 0.002 pH + 2 Digits / Data Logger / User with Password Protection / Includes Electrode / Battery-Powered
The advanced environmental meter stands for precision, user-friendliness, and GLP compliance (Good Laboratory Practice). With a high-resolution LCD display, the environmental meter provides a clear and concise presentation of measurement values. GLP compliance is ensured through automatic data recording and traceable documentation. It allows measurement of pH or redox value and temperature with external sensors.
A Permanent Measurement Verification (PMV) indicates to the operator, using a color bar, where the measurement value is located within the calibration range, providing insight into whether the measurement is in the correct range.
The graphically guided calibration makes the process simple and user-friendly. User and sample management enable easy navigation and adjustment of measurement parameters on the environmental meter. Sample information can be stored to facilitate the management and identification of measurements. A generous internal data storage saves extensive records without the need for external storage. The USB-C port on the environmental meter ensures fast data transfer and charging. A powerful LiPo battery allows hours of measurements before needing to be recharged.
Overall, this environmental meter represents a significant step in the development of handheld and laboratory instruments. The high accuracy of ± 0.002 pH + 2 Digits, graphically guided calibration, GLP compliance, user and sample management, and data storage make it an indispensable tool for scientists, researchers, and laboratory technicians relying on precise pH measurements. It not only enhances the accuracy and efficiency of experiments but also streamlines daily work in industry, quality assurance, and the laboratory.
Features:
- Fast, precise pH and temperature measurement
- Redox measurement (with optional electrode)
- GLP data management
- Easy 2, 3, 4, and 5-point calibration
- Calibration reminder
- Permanent Measurement Verification (PMV)
- Graphical display of measurement history
- Data logger
Includes:
- 1 x Environmental Meter PCE-PH 228
- 1 x pH Electrode PE-03
- 1 x Temperature Sensor
- 1 x Service Pouch
- 1 x USB-C Cable
- 1 x Quick Start Guide
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| pH | |
| Measurement Range | -2 pH ... +20 pH |
| Resolution | 0.001 pH |
| Accuracy | ± 0.002 pH + 2 digits |
| Electrode | |
| Designation | PE-03 |
| Measurement Range | +1 pH ... +13 pH |
| Temperature Range | 5 ... 60 °C |
| Application | Aqueous non-corrosive media |
| Reference Electrolyte | Ag/AgCl |
| Shaft Material | Epoxy resin |
| Shaft Length | 160 mm |
| Shaft Diameter | 12 mm |
| Cable Length | 1 m |
| Redox | |
| Measurement Range | -2000 mV ... +2000 mV |
| Resolution | 1 mV |
| Accuracy | ± 2 mV |
| Temperature Sensor | |
| Minimum Temperature | -20 °C |
| Maximum Temperature | 100 °C |
| Resolution | 0.1 °C |
| Accuracy | ± 0.5 °C ( at 20 °C) |
| General Technical Data | |
| Storage Medium | Internal memory |
| Storage Interval from | 1 s |
| Storage Interval to | 12 h |
| Storage Capacity | 32 GB |
| Storage Capacity Additional Information | 100 records with a maximum of 100,000 data points per record |
| Interface | USB-C |
| Menu Language | German, English, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Danish, Japanese |
| Protection Class (Device) | IP52 |
| Power Supply | 5 V DC, 500 mA |
| Weight | 252 g |
| Dimensions (L x W x H) | 178 x 85 x 32 mm / 7 x 3,3 x 1,2 in |
| Operating Conditions | -20 ... 65 °C , 10 ... 95 % r.H |
| Storage Conditions | -20 ... 65 °C , 10 ... 95 % r.H |
| Languages of the Manual | German, English |
| Batteries and Accumulators | |
| Type | Lithium polymer battery |
| Lithium Info | Lithium in the product (built-in or included) |
| Capacity | 2500 mAh |
| Voltage | 3.7 V |
| System | Secondary: Rechargeable battery |
| Quantity | 1 |
