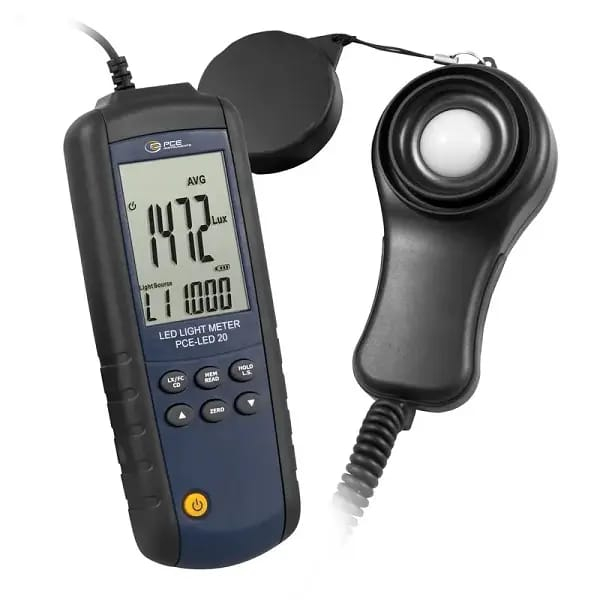

PCE Instruments PCE-LED 20 Handheld Light Meter
Handheld light meter with automatic range selection, displays measuring units in lux or footcandle
PCE-LED 20 is a photometer with an external LED light sensor.
The cable of the sensor has an extended length of approx. 1.5 m / 4.9 ft.
Different work or production processes require different lighting conditions.
In school, office and factory environments, lighting must also meet applicable safety standards.
Indoor lighting conditions can be assessed quickly and easily using this meter.
The LED light meter or lux meter can display measured values directly on the display.
A direct measurement is thus immediately possible.
By means of various presets, the functions installed in the device can also be activated or deactivated.
These functions include the normal HOLD function, in which the measured value is frozen in the display.
In addition, the extreme values as well as the average value can be frozen in the display.
Further functions of the LED lux meter are the zero adjustment, the automatic shutdown and the automatic range selection.
Measurements are possible with the LED lux meter in lux or footcandle.
The unit has only seven keys, allowing for one-hand operation.
This also makes the instrument simple to use.
The LED lux meter is a battery-powered handset, making the device portable and ideal for measurements in the field.
The measuring sensor of the LED lux meter has a large exposure area.
For convenience, the sensor is located on a coiled cable that can be extended to full length only when needed.
A protective cap on the sensor prolongs its life.
This protective cap should be placed on the sensor during storage.
In addition, the protective cap is required when a zero adjustment is to be performed on the LED lux meter.
Key Features
- Dual Units: Displays measurements in lux or footcandle.
- Portable: Battery-powered and handheld.
- External Sensor: With 1.5m (4.9ft) coiled cable and protective cap.
- Automatic Range Selection: For easy measurement.
- Multiple Functions: MIN/MAX/AVG/HOLD functions.
- User-Friendly: Seven-key operation for one-hand use.
- Zero Adjustment: For accurate readings.
Specifications
Measuring Units: Lux, Footcandle
Cable Length: 1.5 m (4.9 ft)
Sampling Rate: 2.5 measurements per second
Power Supply: Batteries (included)
Functions: MIN, MAX, AVG, HOLD, Zero Adjustment, Auto Power Off, Auto Range Selection
Kit Contents
1 x PCE-LED 20 Photometer
1 x Light sensor with protective cap
3 x Batteries
1 x Carrying case
1 x User manual
Accurately measure light levels with the PCE-LED 20!
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Measuring ranges | 40 / 400 / 4000 / 40000 / 400000 lx 40 / 400 / 4000 / 40000 fc |
| Measuring units | Lux (lx) or footcandle (fc) |
| Sensor | Silicone photodiode with built-in filter |
| Display | Max. representation 3999 Representation of 40000 / 400000 lux and 40000 fc in klux and kfc respectively |
| Measuring accuracy | ± 3% (for a standard incandescent lamp at 2856 K and LED white light) ± 6% for other visible light sources |
| Overload indication | OL = Overload |
| Internal memory | 99 measured values |
| Measuring rate | 2.5 x per second |
| Measurable sources of light | LED and any other visible light |
| Measuring functions | Maximum / Minimum / Average / Hold / Zero Automatic balance Automatic shutdown Automatic range selection |
| Power supply | 3 x 1.5V AAA batteries |
| Operating conditions | 5 ... 40°C / 41 … 104°F, 0 ... 70% RH |
| Storage conditions | -10 ... 60°C / 14 … 140°F, 0 ... 70% RH |
| For compliance with standards | EMC: EN 61326-1 (2006) IEC 61000-4-2 (2006) IEC 61000-4-3 (2006) + (2007) JIS C1609: 1993 CNS 5519 OSHA § 1915.82 |
| Dimensions | Approx. 162 x 62 x 28 mm / 6.4 x 2.5 x 1.1 in (L x W x H) |
| Weight | Approx. 250 g /< 1 lb |
| Length of sensor cable | Approx. 1.5 m / 4.9 ft |
| Reproducibility | ± 3% |
