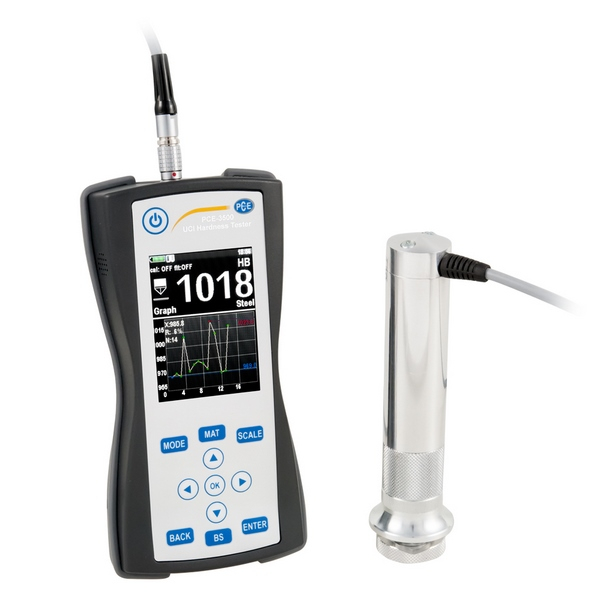

PCE Instruments PCE-3500-10 Material Tester with 10 N Probe

Overview

This advanced non-destructive hardness tester, the PCE Instruments PCE-3500-10 Material Tester with 10 N Probe, is engineered for precise hardness measurement of metallic components using the Ultrasonic Contact Impedance (UCI) test procedure. It directly addresses the critical need for non-destructive testing, particularly on edge layer hardened parts where traditional methods might cause damage or be unsuitable. The PCE-3500 operates by measuring the frequency shift of a Vickers diamond probe as it gently presses against the surface, allowing for accurate hardness determination based on material characteristics. This UCI hardness tester is especially suited for components like punching tools, presses, thin-walled parts, cog wheels, turbine blades, camshafts, and weld seams, making it ideal for industries requiring meticulous quality control without leaving visible marks. Featuring a large color LC display, memory function via SD card, and comprehensive PC software for statistical evaluation, the PCE-3500-10, with its included 10 N probe, provides metallurgists, manufacturing engineers, and quality assurance professionals with a versatile, accurate, and essential tool for diverse hardness testing applications.

Key Features

• Non-Destructive UCI Procedure: Measures hardness with microscopically slight pressure, making it ideal for finished or edge layer hardened metallic components without visible damage.
• Multi-Scale Hardness Measurement: Tests and displays results in HRC, HRB, HV, HB, and MPa scales, providing comprehensive material characterization.
• Versatile Measurement Direction (360°): Allows for accurate hardness determination in any position, enhancing flexibility for complex geometries and difficult-to-access areas.
• Large Color LC Display: Provides clear, intuitive visualization of measured values, statistical data (MAX/MIN, average, standard deviation), and bar charts.
• Memory Function via SD Card & PC Software: Equipped with a 2 GB SD card for extensive data storage and includes PC software for detailed evaluation and analysis of measured data.

Specifications

Product Name: PCE Instruments PCE-3500-10 Material Tester with 10 N Probe

Measuring Principle: Ultrasonic Contact Impedance (UCI)

Hardness Scales: HRC, HRB, HV, HB, MPa

Probe Included: 10 N UCI probe

Indenter: 136° Vickers diamond

Measurement Direction: 360°

Display: Large color LC display

Memory: Internal memory via 2 GB SD card

Data Analysis: Statistical values (MAX/MIN, average, standard deviation), bar charts, PC software evaluation

Probes: Interchangeable (different pressure forces available)

Material Characteristics: Characteristic curve of material pre-calibrated

Primary Application: Non-destructive hardness measurement of metallic components, especially edge layer hardened

Country of Origin: N/A

Shipping Wt: N/A

Temperature Max. Service: N/A

Applications

Ideal for quality control engineers, metallurgists, manufacturing technicians, and inspectors in industries such as automotive, aerospace, tool and die making, and machinery manufacturing. This UCI hardness tester is essential for non-destructive testing of edge layer hardened components like nitrided parts, induction hardened elements, punching tools, presses, thin-walled components, cog wheels, turbine blades, camshafts, and weld seams. It's also suitable for general hardness testing applications where minimal surface marking and high precision are required, ensuring material integrity and compliance without damaging finished products.

Performance and Characteristics

The PCE Instruments PCE-3500-10 Material Tester delivers highly precise and non-destructive hardness measurements on metallic components through its sophisticated UCI test procedure. The 10 N UCI probe, equipped with a 136° Vickers diamond, provides reliable readings even on sensitive or finely finished surfaces, with minimal visible indentation. Its ability to measure in any 360° direction enhances versatility for complex geometries. The large color LC display presents comprehensive data, including statistical values and bar charts, facilitating quick assessment. Extensive data storage via the included 2 GB SD card and powerful PC software enable in-depth analysis, trend monitoring, and efficient reporting of measured values. This combination of non-destructive precision, versatile application, and advanced data management makes it an indispensable tool for maintaining the quality and performance of critical metallic parts, particularly those with hardened edge layers.

Additional Information

The PCE-3500 UCI hardness tester is a professional-grade instrument designed for the unique challenges of non-destructive material characterization in modern manufacturing. Its fundamental principle of operation, combined with interchangeable probes of varying pressure forces, offers broad adaptability to diverse hardness testing applications. The pre-calibrated material characteristic curves simplify setup and enhance measurement accuracy. With its robust data evaluation capabilities, including statistical analysis and PC integration, this device empowers users to make informed decisions about material quality and process optimization. It is a valuable investment for professionals committed to advanced quality assurance and the integrity of metallic components.

Kit Contents

• 1 x UCI hardness tester PCE-3500
• 1 x 10 N UCI probe
• 1 x 2 GB SD card
• 1 x USB cable
• 1 x PC software
• 1 x Instruction manual

Ensure non-destructive, precise hardness measurement for critical metallic components. Shop the PCE Instruments PCE-3500-10 Material Tester today!
