PCE Instruments PCE-DFG N 100TW Force Gauge, 0 to 100 Nm

Force Gauge up to 100 Nm / External torque transducer 1/2" internal square / Graphic display / PEAK function / Sampling rate max. 1600 Hz / Incl. Software

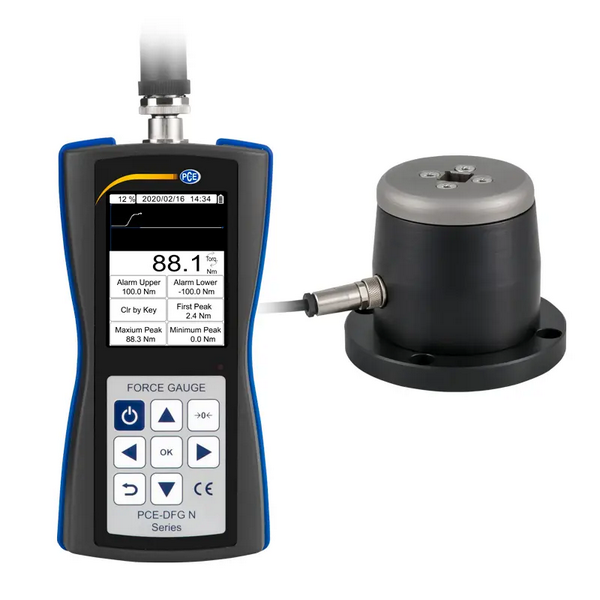

The force gauge consists of a handheld measuring device and an external torque transducer. The torsion transducer is connected to the hand-held device via a 1.5 m / 4.9 ft long cable and thus enables installation in a test stand or direct assembly on a test bench.

The force gauge is delivered adjusted so that the control measurements can be started immediately. A calibration certificate is optionally available for the force gauge. This certificate is a target / actual comparison on a traceable reference standard and thus serves as proof of the measurement accuracy. The measurement uncertainty of the force gauge is only 0.5% of the measuring range. The torque measuring device is therefore used as a reference device for testing and adjusting static torque tools. A screw latch is essential for dynamic torques.

Features:

• Left / right torsion measurement
• 1600 Hz sampling rate
• Error limit 0.5% of the measuring range
• PEAK / Hold function
• Graphic display
• PC software
• Power adapter and battery operation possible

Includes:

• 1 x Force Gauge PCE-DFG N 100TW
• 1 x Torque transducer 100 Nm
• 1 x 1.5 m / 4.9 ft sensor cable
• 1 x PC software
• 1 x USB data cable
• 1 x Power supply
• 1 x Carrying case
• 1 x Sensor screw socket
• 1 x Instruction manual
