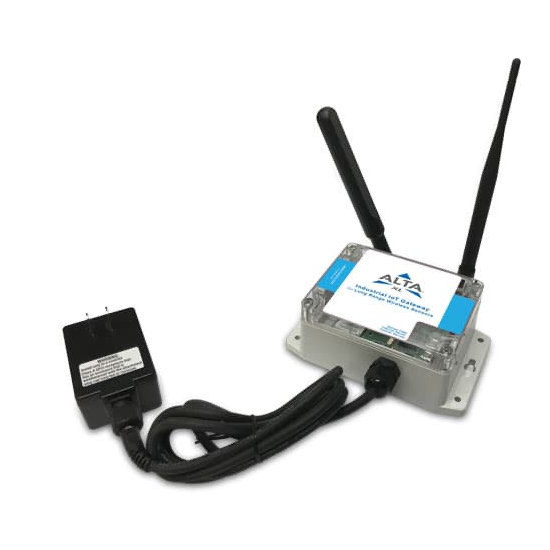

Monnit MNG3-9-CME-IN-ND ALTA XL 900 MHz Industrial IoT Gateway, No Data, All Americas

ALTA XL 900 MHz Industrial IoT Gateway, No Data, All Americas

The ALTA XL ® IoT Gateway features a powerful wireless transceiver with up to 1 Watt transmission strength, an amplified receiver, and 4G LTE CAT-M1/NB2 cellular technology to backhaul ALTA® Wireless Sensor data. The ALTA XL IoT Gateway can send and receive data communications with ALTA Sensors at 2,000+ feet through 18+ walls in commercial building environments.

You only need a power source and the iMonnit ® Cloud Platform to monitor virtually any environment and equipment using Monnit's industry-leading wireless IoT devices. The ALTA XL ® IoT Gateway communicates with ALTA Sensors and iMonnit to deliver data and send alerts about various machine, equipment, or area conditions.

The ALTA XL ® IoT Gateway is available in two versions: Commercial and Industrial. It's equipped with a 60-hour backup battery and will continue to communicate with iMonnit via its advanced cellular engine transmission in the event of a power outage.

Additionally, the ALTA XL ® IoT Gateway comes with an RJ-45 Ethernet jack (commercial version only) for local device configuration. However, it's ideal for applications without a wired Internet connection or with infrastructure dedicated to other resources.

The ALTA XL ® IoT Gateway also includes a GNSS location chipset supporting GPS, GLONASS, BeiDou, Galileo, and QZSS satellites. With the proper gateway subscription enabled, the IoT gateway's location data can be collected, viewed, and distributed to iMonnit and additional software via an application programming interface (API).

Features:

• 4G LTE CAT-M1/NB2 cellular technology
• Wireless range of 2,000+ feet through 18+ walls (Actual range may vary depending on the environment)
• Frequency-Hopping Spread Spectrum (FHSS)
• Best-in-class interference immunity
• Encrypt-RF® Security (256-bit Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• 32,000 sensor message memory (Total messages in memory varies with sensor type. (32,000 is for Temperature Sensors.))
• Over-the-air (OTA) updates (future-proof)
• True plug and play, no hassles for Internet configuration setup
• No PC required for operation
• Local status LEDs with transmission and online status indicators
• Magnetic on/off power button
• AC power supply
• Up to 60-hour battery backup in the event of a power outage
• External magnetic utility switch
• RJ-45 with 10/100BASE-TX Ethernet jack for configuration and server connectivity (commercial version only)
• Location data subscription supported (GPS/GLONASS/BeuDou/Galileo/QZSS)

Applications:

• Remote Location and Asset Monitoring
• Shipping and Transportation
• Agricultural Monitoring
• Vacant Property Management
• Vacation Home Property Management
• Construction Site Monitoring
• Data Center Monitoring

Includes:

• Industrial Cellular Gateway
• Wireless Sensor Network Antenna
• Cellular Network Antenna
• Power Supply
