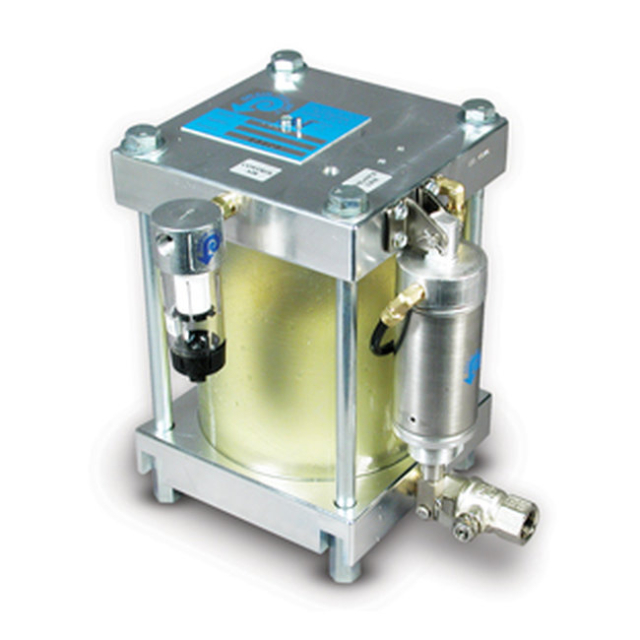

Midwest Control DH50-0LAAA 1/2 Drain All Condensate Trap 170 PSI

1/2 Drain All Condensate Trap 170 PSI

The Drain All Condensate Handler® is the Newest Drain All® Model and Replaces the Model 1700. This is the Flagship Condensate Trap in the Drain•All Product Family. The Condensate Handler® Includes Drain All® Patented "Through Port" Design for Increased Capacity for Handling of Solid Debris.

Features:

• Zero Air Loss Drain
• Will Fit Most Industrial Applications and Compressors Up to Approximately 1500 Hp
• Industrially Robust Unit with Fewer Moving Parts than Competitive Traps So It Can Stand Up to the Most Demanding Applications with Minimal Maintenance
• Requires No Electrical Connections
• 5 Micron Pre-Filter Included (Replacement Elements Available)
• Manual "Push to Test" Button For Easy Check of Operation
• Maximum Liquid Temperature: 170 F
• Maximum Liquid Pressure: 170 PSI
• Control Air Min./Max.: 40PSI/130PSI
• Max. Flow at 110 PSIG: 1.5 GPM
• Manufactured Under an ISO 9001 2008 Certified Quality System
• Backed By an Industry Best 3 - Year Factory Warranty
• Energy Savings Rebate Available Thru Most Utility Companies
• Made in USA
