Overview

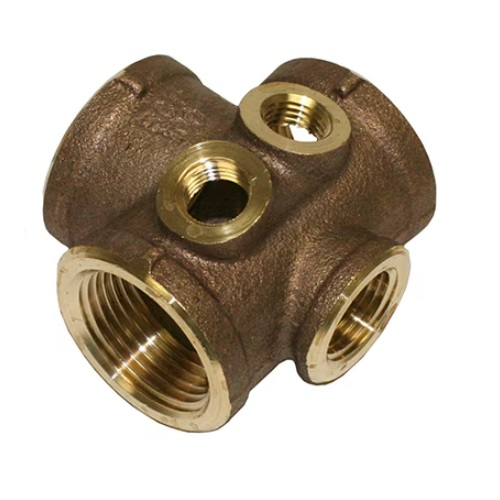

The **Merrill BCTNL100 1" Compact Brass Tank Tee** is an essential, space-saving fitting engineered for **connecting submersible well pumps to residential or light commercial pressure tanks**. Measuring just 2.5" long and featuring a convenient 1/2" drain, this durable **no-lead brass tank tee** provides multiple tappings for integrating essential accessories, streamlining the installation of a complete water pressure system, especially in confined spaces.
This compact tank tee effectively solves the challenge of creating a neat, secure, and functional connection point at the pressure tank while minimizing footprint. It integrates essential connections for pressure switches, gauges, and drain valves into a single, robust unit, enhancing system integrity and simplifying maintenance. Ideal for plumbing professionals and well system installers, the BCTNL100 ensures a long-lasting, corrosion-resistant, and lead-free connection crucial for dependable water supply systems.
Key Features
- Compact Design: At 2.5" long, it's ideal for installations where space is limited, reducing overall system footprint.
- No-Lead Brass Construction: Ensures superior corrosion resistance and compliance with lead-free potable water standards.
- Integrated 1/2" Drain: Provides a convenient point for draining the pressure tank for maintenance or winterization.
- Multiple Accessory Tappings: Includes standard 1/4" NPT ports for easy connection of pressure switches and gauges.
- Robust Connection Point: Creates a secure and reliable connection at the pressure tank for main water lines.
Specifications
Part Number: BCTNL100
Connection Size (Main): 1 inch FIP
Overall Length: 2.5 inches (63.5 mm)
Drain Size: 1/2 inch
Accessory Tapping Size: 1/4 inch NPT (for pressure switch and gauge)
Material: No-Lead Brass
Maximum Pressure: N/A
Maximum Temperature: N/A
Applications
Ideal for **plumbing contractors, well system installers, and water treatment specialists** involved in setting up or maintaining residential and light commercial water pressure systems. The **Merrill BCTNL100 Compact Brass Tank Tee** is essential for installations that require a robust, organized, and space-efficient connection point at the **pressure tank** for a **submersible well pump**. It is perfectly suited for use in: **new well system installations, water well pump replacements, pressure tank upgrades, and small agricultural setups** where a centralized, compact connection for monitoring and draining is necessary. Its durable, no-lead brass construction ensures reliable performance in potable water applications.
Performance and Characteristics
The **Merrill BCTNL100 Compact Brass Tank Tee** delivers robust and reliable performance as a central connection point in water pressure systems, particularly where space is at a premium. Crafted from no-lead brass, it offers superior corrosion resistance and ensures compliance with health and safety standards for potable water, guaranteeing a long service life. Its precise 1" FIP connection and chamfered threads facilitate easy and leak-free pipe installation, minimizing labor time and ensuring system integrity. The strategically integrated 1/4" NPT tappings provide convenient access for critical components like pressure switches and gauges, allowing for effective system monitoring and control. Furthermore, the built-in 1/2" drain simplifies maintenance procedures, enabling easy draining of the pressure tank for servicing or winterization. This combination of compact design, durable materials, and practical features makes the BCTNL100 an indispensable component for efficient and reliable water well installations.
Kit Contents
- 1 x Merrill BCTNL100 1" Compact Brass Tank Tee, 1/2" Drain, 2.5" Long
Optimize your water pressure system with a compact and reliable tank tee. Shop the Merrill BCTNL100 now!
Ensure organized, leak-free connections in tight spaces. Order your Merrill BCTNL100 today!
Streamline your well pump installations with professional-grade components. Discover the Merrill BCTNL100 Compact Brass Tank Tee!
