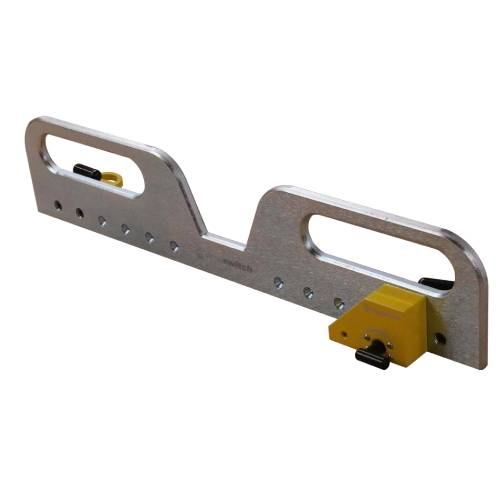

Magswitch 81101371 Drill Press Fence Pro
- Part #:81101371
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e){kind=small}
Free ShippingDescription
Drill Press Fence Pro
Features
- Powerful magnets allow quick positioning and fine adjustment of the fence and make it easy to remove and store when a fence is not needed.
- Magnets can be positioned at different points on the fence for optimal placement on drill press tables.
- The sturdy large vertical plate that will not interfere with the drill chuck, even when drilling holes close to the fence, and can be used as a bandsaw resaw fence.
- Stop block that can be quickly be positioned flush with the drill press table or sacrificial material under the workpiece, and can be stored out of the way when it is not needed.
⚠️ Attention CA Residents: Prop 65 Warning
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
Technical details
| Maximum Breakaway Force | 291.01 lbs / 132 kg |
| Maximum Shear | 41.89 lbs / 19 kg |
| Full Saturation Thickness | 0.24 in / 6 mm |
| Overall Height (Max) | 4.29 in / 109 mm |
| Overall Length | 21 in / 533.4 mm |
| Overall Width | 2.72 in / 69.15 mm |
| Net Weight | 8.38 lbs / 3.8 kg |
| Magnetic Pole Footprint | 1.57 x 1.22 (2x) in / 40 x 31 (2x) mm |
