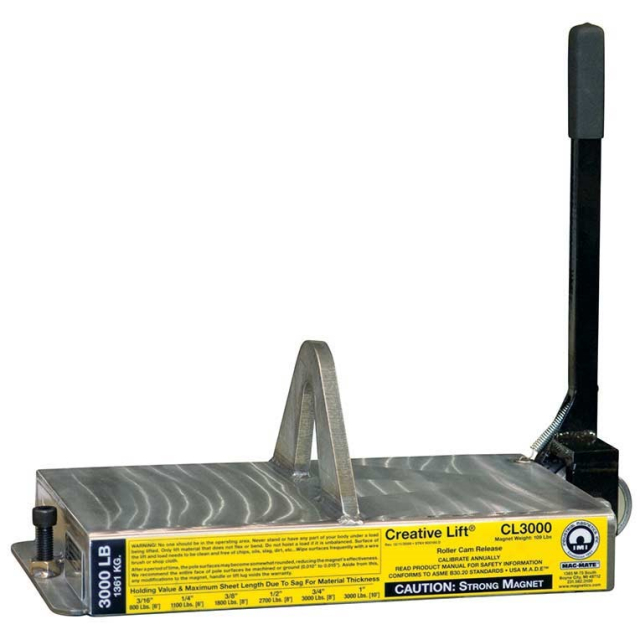

Industrial Magnetics Mag-Mate CL3000 Ceramic Creative Lift Magnet, Working Load Limit 3000 lbs

Overview

The Industrial Magnetics Mag-Mate CL3000 Ceramic Creative Lift Magnet is a powerful permanent lift magnet designed for handling thick, non-flexing steel sheets and parts. With a Working Load Limit (WLL) of 3000 lbs, this magnet eliminates the need for slings, chains, or clamps, enabling single-person operation for tasks that previously required multiple workers. It features a non-marring roller cam release and a durable stainless steel casing, making it ideal for various industrial applications. This product solves the problem of needing a safe, efficient, and reliable lifting solution for heavy steel materials.

Key Features

High Lifting Capacity: Working Load Limit of 3000 lbs for handling heavy steel materials.
Non-Marring Roller Cam Release: Easily releases parts without damaging valuable materials.
Spring Return Handle: Ensures easy and safe operation.
"Jack Screw" Secondary Release: Provides an additional release mechanism for added safety.
Durable Stainless Steel Casing: Offers long-lasting performance and corrosion resistance.

Specifications

Model: CL3000
Type: Ceramic Creative Lift Magnet
Working Load Limit (WLL): 3000 lbs
Design Factor: 3:1
Heat Resistance: Up to 300°F (148°C)
Casing Material: Stainless Steel
Compliance: ASME B30.20 BTH-1 Design Category B Service Class 3

Applications

This magnet is ideal for handling steel plates, die castings, and forgings in manufacturing, fabrication, and industrial settings. It is used in steel yards, machine shops, and construction sites. The CL3000 is perfect for applications requiring a safe and efficient lifting solution for heavy steel materials.

Performance and Characteristics

The Industrial Magnetics Mag-Mate CL3000 provides a strong and reliable magnetic hold, ensuring secure material handling. The non-marring roller cam release prevents damage to valuable materials. The spring return handle and "jack screw" secondary release enhance safety and ease of use. The durable stainless steel casing ensures long-lasting performance in demanding environments. The 3:1 design factor and ASME compliance provide added safety and reliability. The magnet performs well on thick, non-flexing steel sheets and parts. It is designed to improve efficiency and safety in material handling operations.

Additional Information

Material Thickness and Sheet Length: See WLL chart for specific material thickness and sheet length recommendations.
Magnetic Pole Coverage: The item to be lifted must cover the entire length and width of the magnetic poles for proper engagement and release.
Lifting Sheets Over 8': Use two or more lifts on a spreader bar to prevent sheet flexing, sagging, or peel-off.
Thin Material Lifting: Thin material is susceptible to magnetic bleed through, resulting in two sheets being lifted at once.
Round Material Lifting: Consult the factory before specifying these magnets for use on round materials.
Working Load Limit Notes: WLL values are stated at 33% of the actual value. Round WLL values are based on ideal conditions.

Enhance your heavy material handling with the Industrial Magnetics Mag-Mate CL3000 Ceramic Creative Lift Magnet. Experience safe, efficient, and reliable lifting.
