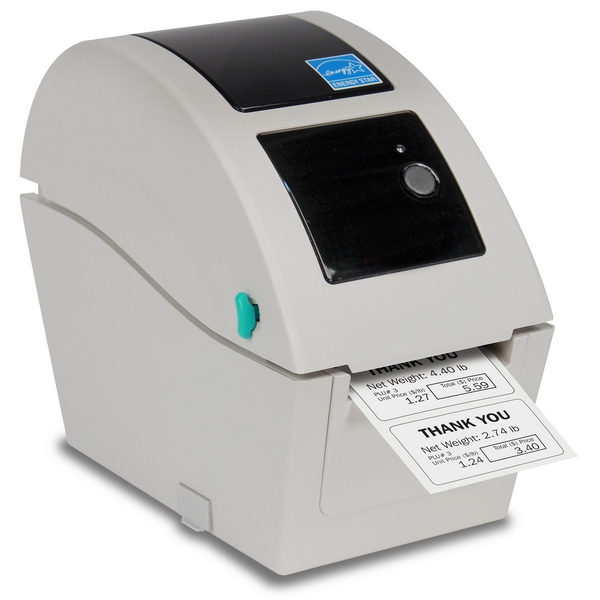

Detecto P225 Thermal Label Printer
- Part #:P225
- Condition:Brand New
The P225 printer is an easy-to use, high-quality solution for many applications that require a fast and accurate printing option. This space-saving direct thermal label printer is designed to work with the D series price computing scales. The P225 is also compatible with all Cardinal weight indicators and DETECTO food service scales with RS232 serial connectivity. The P225's clamshell design provides easy access to media for cleaning and installation. This printer is capable of printing a variety of labels up to 2-inches wide. Labels print at speeds of up to 5 inches per second at 203 DPI. The P225 is capable of printing a variety of graphics and logos through the printer software or Cardinal Scale's nControl label software. Graphics, bar codes, and logos may be stored on the printer's microSD flash memory up to 4 GB (microSD card not included).
Features:
- Compatible with DETECTO's D series price computing scales via an RS232 cable
- Label rolls are quick and easy to install
- Compact footprint
- microSD Flash memory up to 4 GB
- Connectivity is simple via RS-232 serial port
- Print width of 2 inches
- Label rolls available from DETECTO (part no. 7100-0026)
- Stores fonts and graphics for printing logos and graphics through printer software
- Wall mountable
- Common applications include: retail point-of-sale, shelf labeling, product marking, healthcare patient tracking, inventory & asset management, shipping, and receipt printing
- Accessories
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Model: | P225 |
| Resolution: | 8 dots / mm (203 DPI) |
| Printing Method: | Direct thermal |
| Max. Print Speed: | 127 mm (5 in) / second |
| Max. Print Width: | 54 mm (2.13 in) |
| Max. Print Length: | 2,286 mm (90 in) |
| Overall Dimensions: | 4.3 in (W) x 6.8 in (H) x 8.3 in (D) / 109.2 mm (W) x 172.7 mm (H) x 210.8 mm (D) |
| Weight: | 2.65 lb / 1.2 kg |
| Label Roll Capacity: | 5 in (12.7 cm) |
| Processor: | 32-bit RISC CPU |
| Memory: | 4 MB Flash memory, 8 MB SDRAM, MicroSD card reader for Flash memory expansion, up to 4 GB |
| Interface: | RS232 (for scale connectivity), USB 2.0 (for configuration only) |
| Power: | External universal switching power supply, Input: AC 100-240V, 1A, 47-63Hz, Output: DC 24V, 2.08A, 50W |
| Switch, Button, LED: | 1 power switch, 1 feed button, & 1 LED (3 Colors: green, amber, & red) |
| Sensors: | Transmissive gap sensor, Black mark reflective sensor (position adjustable), and Head open sensor |
| Internal Fonts: | 8 alpha-numeric bitmap fonts, Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| Printer Language: | TSPL-EZ ™ |
| Media Type: | Continuous, die-cut, black mark, fan-fold, and notched |
| Media Width: | 0.59 in - 2.36 in (15-60 mm) |
| Media Thickness: | 2.36 - 7.48 mil (0.06 - 0.19 mm) |
| Media Core Diameter: | 1 in - 1.5 in (25.4 mm - 38 mm) |
| Label Length: | 0.39 in - 90 in (10 - 2,286 mm) |
| Environment Condition: | Operation: 41° F to 104° F (5° C to 40° C); 25 - 85% non-condensing; Storage: -40° F to 140° F (-40° C to 60° C); 10 - 90% non-condensing |
| Safety Regulation: | FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TUV/Safety, CCC, ENERGY STAR® |
| Environmental Concern: | Comply with RoHS, WEEE |
| Included Accessories: | Windows labeling software CD disk, Quick start guide, USB cable, Power cord, External universal switching power supply |
| Enclosure: | Clamshell design with wall mount holes at bottom cover |
