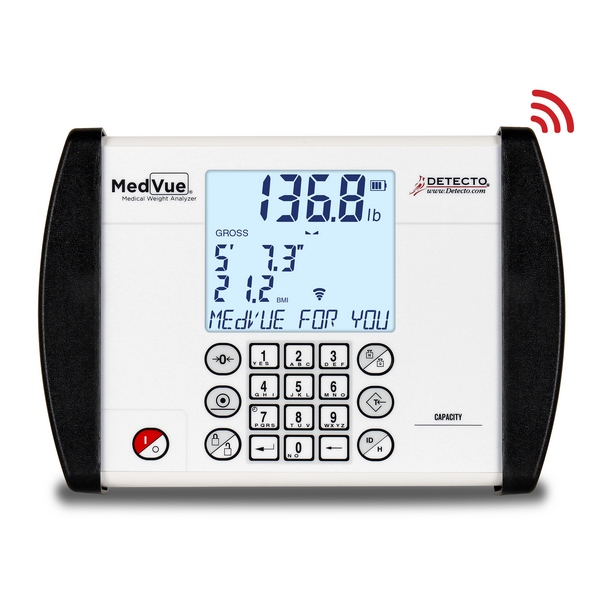

DETECTO's MedVue® medical weight analyzer is utilized on select clinical scales, including DETECTO's wheelchair, bariatric, and stretcher scales. The MedVue® features a vivid 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVue's 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include units locking into kilograms or pounds, 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, four different languages available in set-up (English, Spanish, French, and German).
Features:
- Units Locking into Kilograms or Pounds
- Weight, Height, and BMI All Displayed Simultaneously
- 14-Digit Patient ID
- 350-Degree Swivel Mounting Bracket
- Nearly 1-in-High Weight Readouts
- Backlit Blue Display
- 3.5" x 3" backlit blue LCD screen
- 14-digit patient ID
- 350° swivel mounting bracket
- Store up to 99 tare weights
- BMI calculation
- EMR/EHR Ready
- Made in USA quality
- Nearly 1" high weight readouts
- NTEP legal-for-trade
- RS232 serial and USB ports standard
- Steel construction
- Wi-Fi and Ethernet optional
- 6 C alkaline, Ni-Cad or NiMH batteries (not included)
- NTEP Certificate: 13-011
- Accessories
- You May Also Like
- Your Recently Viewed
- Reviews
Power Requirements: | 6 "C" cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter |
Units Locking: | Established upon initiliazation and user selects either LB or KG |
Overall LCD Display Size: | 3.5 inch W x 3 inch H (89 mm W x 76 mm H) backlit blue LCD |
Weight Display: | 5 digit, seven segment, 0.875 inch (22.23 mm) high LCD |
Height Display: | 4 digit, seven segment, 0.5 inch (12.7 mm) high LCD |
Body Mass Index Display: | 3 digit, seven segment, 0.5 inch (12.7 mm) high LCD |
ID Display: | 14 digit, 14 segment, 0.35 inch (8.89 mm) high LCD |
Sensitivity: | 0.5 uV/division (0 to 3.0 mV/V), Class III |
Operating Temperature: | 14 to 104 ºF (-10 to +40 ºC) |
Signal Input Range: | 0 to 15mV max. |
Transducer Excitation: | 5.0 VDC |
Number of Load Cells: | up to 4 each 350 Ω |
Load Cell Cable Length: | 30 feet (9 meters) max. |
Resolution: | 10,000 divisions |
Capacities: | eight: 10,000 divisions commercial - Height: 0 - 9' 11.9 - BMI: up to 999 |
NTEP: | Certificate of Conformance Number 13-011 |
Division Value: | 1, 2 or 5 x 1, 0.1, 0.01, 0.001 |
Sample Rate: | 1 to 100 samples per second selectable |
Auto Zero Range: | 0.5 or 1 through 9 divisions |
Weighing Units: | Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and Kilograms/Pounds (kg/lb) |
Keyboard: | Membrane type with 19 keys |
Enclosure Size: | 9.8 inch W x 6.8 inch H x 1.8 inch D (248.9 mm W x 172.7 mm H x 45.7 mm D) |
Construction: | Painted Steel |
Battery Life: | 7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF) |
LCD Viewing Range: | Up to 30 feet / 10 meters for weight digits |
